Encryption at Rest

Encryption at Rest - Data Protection

What is Encryption at Rest?

Encryption at Rest means encrypting data when it’s stored on disk (at rest), as opposed to data in transit (being transmitted over network).

Why it matters:

Protects data if physical storage is compromised
Compliance requirement (GDPR, HIPAA, PCI-DSS)
Defense in depth security strategy
Minimal performance impact with AWS managed encryption

Implementation Overview

We implemented encryption for:

DynamoDB Tables (6 tables) - Using AWS KMS
S3 Buckets (2 buckets) - Using AES-256

DynamoDB Encryption

Tables Encrypted

All DynamoDB tables now use AWS KMS encryption:

ArticlesTable
UserFavoritesTable
GalleryPhotosTable
GalleryTrendsTable
UserProfilesTable
LocationCacheTable

Configuration

CloudFormation Template Changes:

ArticlesTable:
  Type: AWS::DynamoDB::Table
  Properties:
    TableName: !Sub "articles-${Environment}"
    # ... other properties ...

    # ✅ ADDED: KMS Encryption
    SSESpecification:
      SSEEnabled: true
      SSEType: KMS

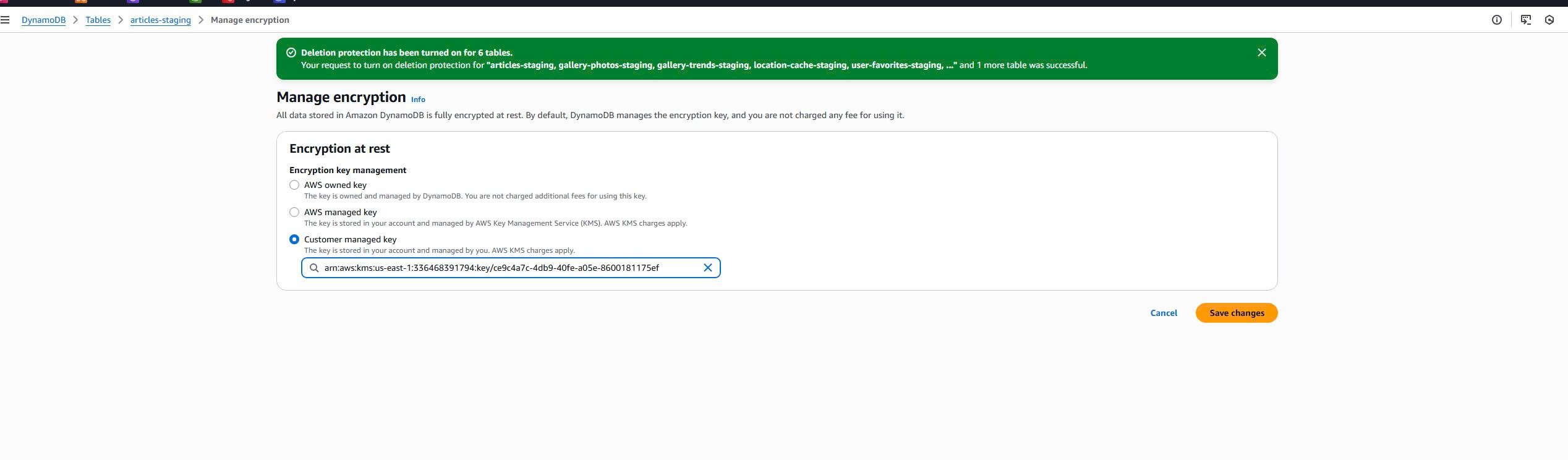

DynamoDB Encryption Settings

How it Works

1. Application writes data to DynamoDB
   ↓
2. DynamoDB encrypts data using KMS key
   ↓
3. Encrypted data stored on disk
   ↓
4. When reading, DynamoDB decrypts automatically
   ↓
5. Application receives decrypted data

Key Points:

Encryption/decryption is automatic
No code changes required
Transparent to application
Uses AWS-managed KMS keys

Benefits

✅ Security:

Data encrypted at rest
Protection against disk theft
Compliance with regulations

✅ Ease of Use:

Fully managed by AWS
Automatic key rotation
No key management burden

✅ Performance:

Minimal latency impact (<1ms)
No application changes needed

Cost

DynamoDB KMS Encryption:

KMS key: $1/month
API calls: ~$0.03 per 10,000 requests
Estimated: $5-10/month for typical usage

S3 Encryption

Buckets Encrypted

Both S3 buckets now use AES-256 encryption:

ArticleImagesBucket (user uploads)
StaticSiteBucket (frontend assets)

Configuration

CloudFormation Template Changes:

ArticleImagesBucket:
  Type: AWS::S3::Bucket
  Properties:
    BucketName: !Sub "travel-guide-images-${Environment}-${AWS::AccountId}"
    # ... other properties ...

    # ✅ ADDED: AES-256 Encryption
    BucketEncryption:
      ServerSideEncryptionConfiguration:
        - ServerSideEncryptionByDefault:
            SSEAlgorithm: AES256
          BucketKeyEnabled: true

S3 Encryption Settings

How it Works

1. Application uploads file to S3
   ↓
2. S3 encrypts file using AES-256
   ↓
3. Encrypted file stored on disk
   ↓
4. When downloading, S3 decrypts automatically
   ↓
5. Application receives decrypted file

Key Points:

Encryption is server-side
Automatic for all objects
No client-side changes needed
Uses S3-managed keys (SSE-S3)

Benefits

✅ Security:

All files encrypted
Protection against unauthorized access
Compliance ready

✅ Cost:

FREE - No additional cost for SSE-S3
No performance impact

✅ Simplicity:

Enabled at bucket level
Applies to all objects
No code changes

Deployment

Step 1: Update CloudFormation Template

File: travel-guide-backend/core-infra/template.yaml

Changes made:

Added SSESpecification to all DynamoDB tables
Added BucketEncryption to all S3 buckets

Step 2: Deploy Stack

cd travel-guide-backend

# Deploy core infrastructure
./scripts/deploy-core.sh staging

# Or manually:
sam build -t core-infra/template.yaml
sam deploy \
  --stack-name travel-guide-core-staging \
  --parameter-overrides Environment=staging \
  --capabilities CAPABILITY_IAM

Step 3: Verify Encryption

Verify DynamoDB:

# Check table encryption
aws dynamodb describe-table \
  --table-name articles-staging \
  --query 'Table.SSEDescription'

# Expected output:
{
  "Status": "ENABLED",
  "SSEType": "KMS"
}

Verify S3:

# Check bucket encryption
aws s3api get-bucket-encryption \
  --bucket travel-guide-images-staging-123456789012

# Expected output:
{
  "ServerSideEncryptionConfiguration": {
    "Rules": [
      {
        "ApplyServerSideEncryptionByDefault": {
          "SSEAlgorithm": "AES256"
        },
        "BucketKeyEnabled": true
      }
    ]
  }
}

Testing

Test DynamoDB Encryption

# Create test article
curl -X POST https://api.example.com/articles \
  -H "Authorization: Bearer $TOKEN" \
  -d '{
    "title": "Test Encryption",
    "content": "Sensitive data",
    "latitude": 10.8231,
    "longitude": 106.6297
  }'

# Verify data is encrypted in DynamoDB
# (You cannot see encrypted data directly - it's transparent)

# Read article back
curl https://api.example.com/articles/{article-id} \
  -H "Authorization: Bearer $TOKEN"

# Data should be readable (decrypted automatically)

Test S3 Encryption

# Upload test image
aws s3 cp test-image.jpg \
  s3://travel-guide-images-staging-123456789012/test/

# Check object encryption
aws s3api head-object \
  --bucket travel-guide-images-staging-123456789012 \
  --key test/test-image.jpg \
  --query 'ServerSideEncryption'

# Expected: "AES256"

Compliance

Regulations Supported

✅ GDPR (EU)

Article 32: Security of processing
Encryption at rest required

✅ HIPAA (Healthcare)

Technical safeguards
Encryption required for PHI

✅ PCI-DSS (Payment)

Requirement 3.4: Encryption of cardholder data
Encryption at rest mandatory

✅ SOC 2

Security principle
Encryption controls

Monitoring

CloudWatch Metrics

DynamoDB:

Monitor KMS API calls
Track encryption errors
Alert on decryption failures

S3:

Monitor encryption status
Track unencrypted uploads (should be 0)

CloudTrail Logging

Enable CloudTrail to audit:

KMS key usage
S3 encryption changes
Access to encrypted data

# Check CloudTrail logs
aws cloudtrail lookup-events \
  --lookup-attributes AttributeKey=ResourceType,AttributeValue=AWS::KMS::Key \
  --max-results 10

Best Practices

1. Use AWS-Managed Keys

✅ Recommended: AWS-managed KMS keys

Automatic rotation
No key management
Lower cost

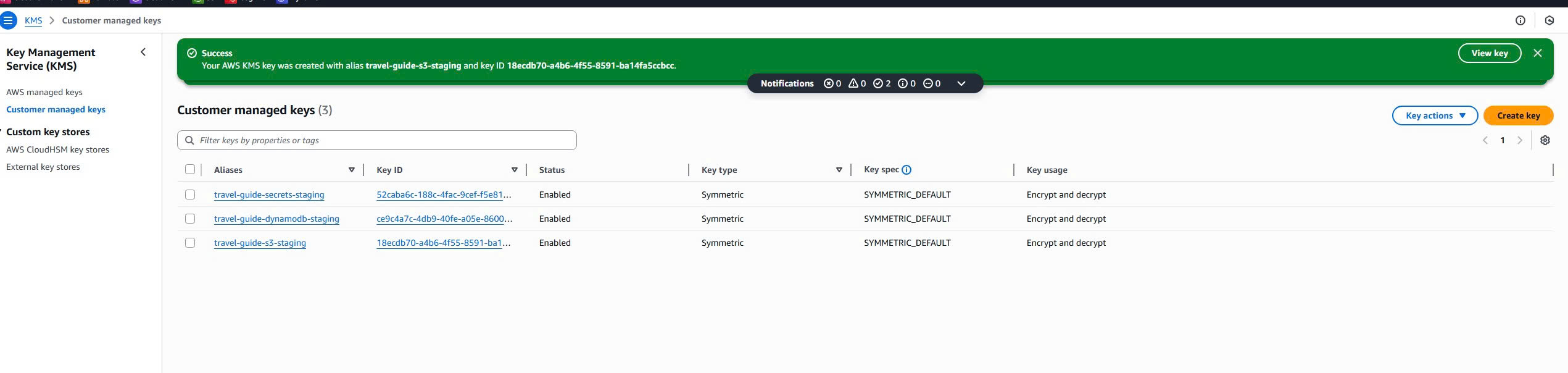

KMS Key Management

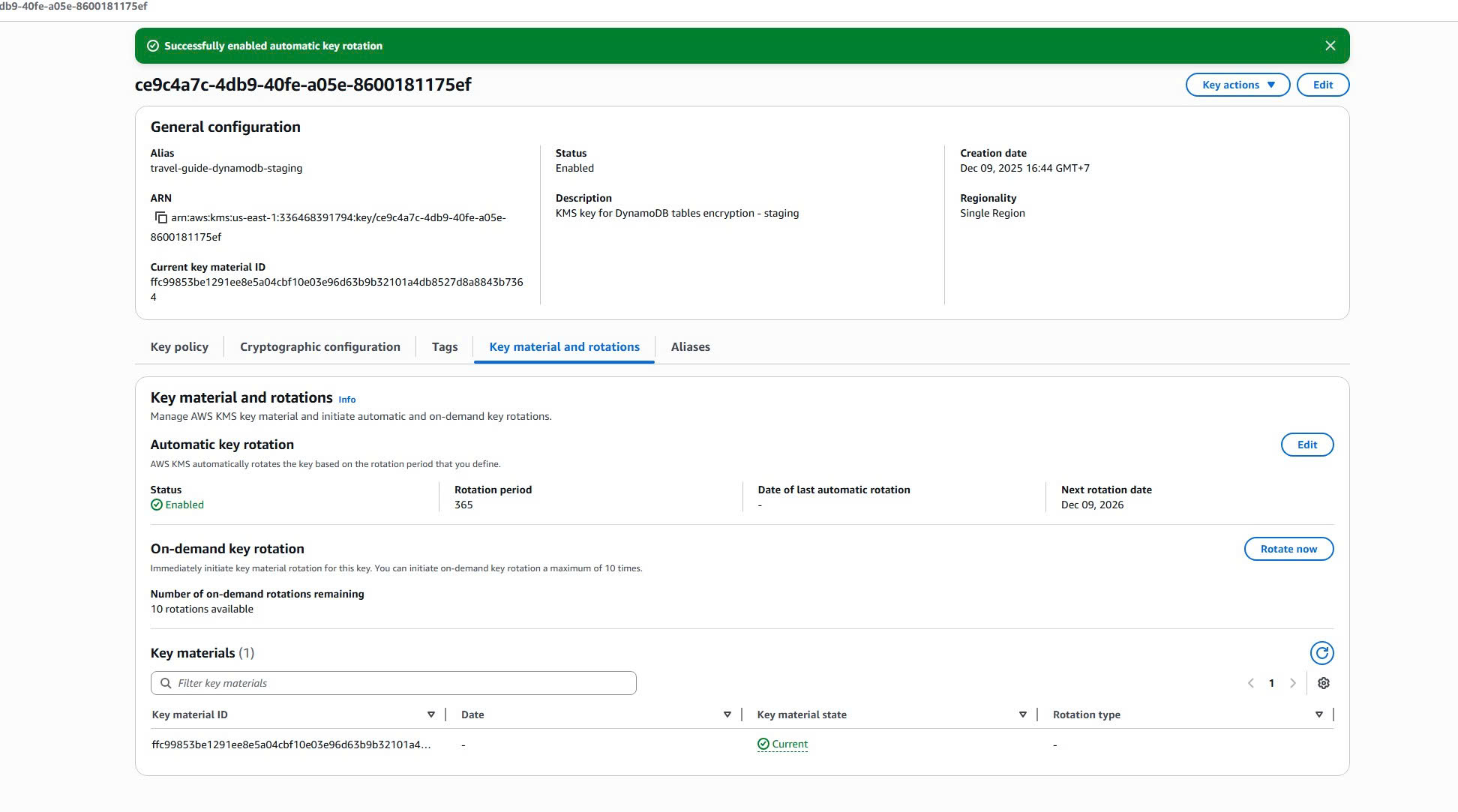

KMS Key Rotation

❌ Avoid: Customer-managed keys (unless required)

Manual rotation
Key management burden
Higher cost

2. Enable Encryption by Default

✅ Do: Enable at bucket/table level

Applies to all data
Cannot be bypassed

❌ Don’t: Rely on object-level encryption

Easy to forget
Inconsistent protection

3. Monitor Encryption Status

✅ Do: Set up CloudWatch alarms

Alert on encryption disabled
Track unencrypted objects

4. Document Encryption Keys

✅ Do: Document which keys encrypt what

KMS key IDs
Key policies
Rotation schedules

Troubleshooting

Issue 1: KMS Access Denied

Error:

AccessDeniedException: User is not authorized to perform: kms:Decrypt

Solution:

Add KMS permissions to Lambda execution role
Grant kms:Decrypt and kms:DescribeKey

{
  "Effect": "Allow",
  "Action": [
    "kms:Decrypt",
    "kms:DescribeKey"
  ],
  "Resource": "arn:aws:kms:*:*:key/*"
}

Issue 2: S3 Encryption Not Applied

Problem: Old objects not encrypted

Solution:

Encryption only applies to new objects
Re-upload existing objects:

# Copy object to itself (re-encrypts)
aws s3 cp \
  s3://bucket/key \
  s3://bucket/key \
  --metadata-directive REPLACE

Issue 3: Performance Impact

Problem: Slight latency increase

Solution:

Normal with encryption (<1ms)
Use S3 Bucket Keys to reduce KMS calls
Already enabled: BucketKeyEnabled: true

Cost Optimization

DynamoDB KMS

Reduce costs:

Use AWS-managed keys (cheaper)
Enable S3 Bucket Keys (reduces KMS API calls)
Monitor KMS usage with Cost Explorer

S3 AES-256

No cost:

SSE-S3 (AES-256) is FREE
No additional charges
No performance impact

Key Takeaways

Encryption at rest protects data on disk
DynamoDB uses KMS - automatic encryption/decryption
S3 uses AES-256 - free and transparent
No code changes required - fully managed
Compliance ready - meets GDPR, HIPAA, PCI-DSS
Minimal cost - $5-10/month for DynamoDB KMS
