AWS Location Service Integration

AWS Location Service (Map/Geocoding)

Components Used in the Project

The project uses Place Index for geocoding, without requiring Map tiles.

Place Index: TravelGuidePlaceIndex (Esri)

Main APIs:

  • SearchPlaceIndexForPosition (reverse geocoding)
  • SearchPlaceIndexForText (forward geocoding)

Place Index Configuration

Creating Place Index

AWS Console Steps:

  1. Navigate to Amazon Location Service
  2. Create Place Index
  3. Configure:
    • Name: TravelGuidePlaceIndex
    • Data provider: Esri
    • Pricing plan: RequestBasedUsage
    • Intended use: SingleUse

SAM Template:

TravelGuidePlaceIndex:
  Type: AWS::Location::PlaceIndex
  Properties:
    IndexName: TravelGuidePlaceIndex
    DataSource: Esri
    PricingPlan: RequestBasedUsage
    DataSourceConfiguration:
      IntendedUse: SingleUse

Backend Integration

How Backend Calls Location Service

In functions/utils/location_service.py:

Logic flow:

  1. Check DynamoDB cache
  2. If cache miss → call AWS Location
  3. If error/no results → fallback to Nominatim
  4. Save to cache with TTL (default 30 days)

Lambda Functions Using Location Service

Functions:

  • CreateArticleFunction
  • UpdateArticleFunction

Environment Variables:

Environment:
  Variables:
    PLACE_INDEX_NAME: !Ref TravelGuidePlaceIndex
    LOCATION_CACHE_TABLE: !Ref LocationCacheTable
    USE_AWS_LOCATION: 'true'

Python Code Example

import boto3
import json
from datetime import datetime, timedelta

location_client = boto3.client('location')
dynamodb = boto3.resource('dynamodb')
cache_table = dynamodb.Table(os.environ['LOCATION_CACHE_TABLE'])
PLACE_INDEX = os.environ['PLACE_INDEX_NAME']

def reverse_geocode(latitude, longitude):
    """Convert coordinates to place name"""

    # Generate cache key
    cache_key = f"reverse:{latitude:.6f},{longitude:.6f}"

    # Check cache
    try:
        response = cache_table.get_item(Key={'cacheKey': cache_key})
        if 'Item' in response:
            cached_data = response['Item']
            # Check if not expired
            if datetime.now().timestamp() < cached_data['expiresAt']:
                print(f"Cache HIT: {cache_key}")
                return json.loads(cached_data['data'])
    except Exception as e:
        print(f"Cache read error: {e}")

    print(f"Cache MISS: {cache_key}")

    # Call AWS Location Service
    try:
        response = location_client.search_place_index_for_position(
            IndexName=PLACE_INDEX,
            Position=[longitude, latitude],  # Note: [lng, lat]
            MaxResults=1
        )

        if response['Results']:
            place = response['Results'][0]['Place']
            result = {
                'label': place.get('Label', ''),
                'municipality': place.get('Municipality', ''),
                'country': place.get('Country', ''),
                'region': place.get('Region', '')
            }

            # Save to cache
            save_to_cache(cache_key, result)
            return result

    except Exception as e:
        print(f"AWS Location error: {e}")
        # Fallback to Nominatim
        return fallback_nominatim(latitude, longitude)

    return None

def forward_geocode(text):
    """Convert place name to coordinates"""

    cache_key = f"forward:{text}"

    # Check cache (similar to reverse)
    # ...

    # Call AWS Location Service
    try:
        response = location_client.search_place_index_for_text(
            IndexName=PLACE_INDEX,
            Text=text,
            MaxResults=5
        )

        results = []
        for item in response['Results']:
            place = item['Place']
            results.append({
                'label': place.get('Label', ''),
                'position': place['Geometry']['Point'],  # [lng, lat]
                'country': place.get('Country', '')
            })

        # Save to cache
        save_to_cache(cache_key, results)
        return results

    except Exception as e:
        print(f"AWS Location error: {e}")
        return []

def save_to_cache(key, data, ttl_days=30):
    """Save geocoding result to DynamoDB cache"""
    try:
        expires_at = int((datetime.now() + timedelta(days=ttl_days)).timestamp())
        cache_table.put_item(
            Item={
                'cacheKey': key,
                'data': json.dumps(data),
                'expiresAt': expires_at,
                'createdAt': int(datetime.now().timestamp())
            }
        )
        print(f"Saved to cache: {key}")
    except Exception as e:
        print(f"Cache write error: {e}")

def fallback_nominatim(latitude, longitude):
    """Fallback to Nominatim if AWS Location fails"""
    import requests

    try:
        url = f"https://nominatim.openstreetmap.org/reverse"
        params = {
            'lat': latitude,
            'lon': longitude,
            'format': 'json'
        }
        headers = {'User-Agent': 'TravelGuideApp/1.0'}

        response = requests.get(url, params=params, headers=headers, timeout=5)
        if response.status_code == 200:
            data = response.json()
            return {
                'label': data.get('display_name', ''),
                'municipality': data.get('address', {}).get('city', ''),
                'country': data.get('address', {}).get('country', ''),
                'region': data.get('address', {}).get('state', '')
            }
    except Exception as e:
        print(f"Nominatim fallback error: {e}")

    return None

DynamoDB Cache for Cost Optimization

LocationCacheTable Structure

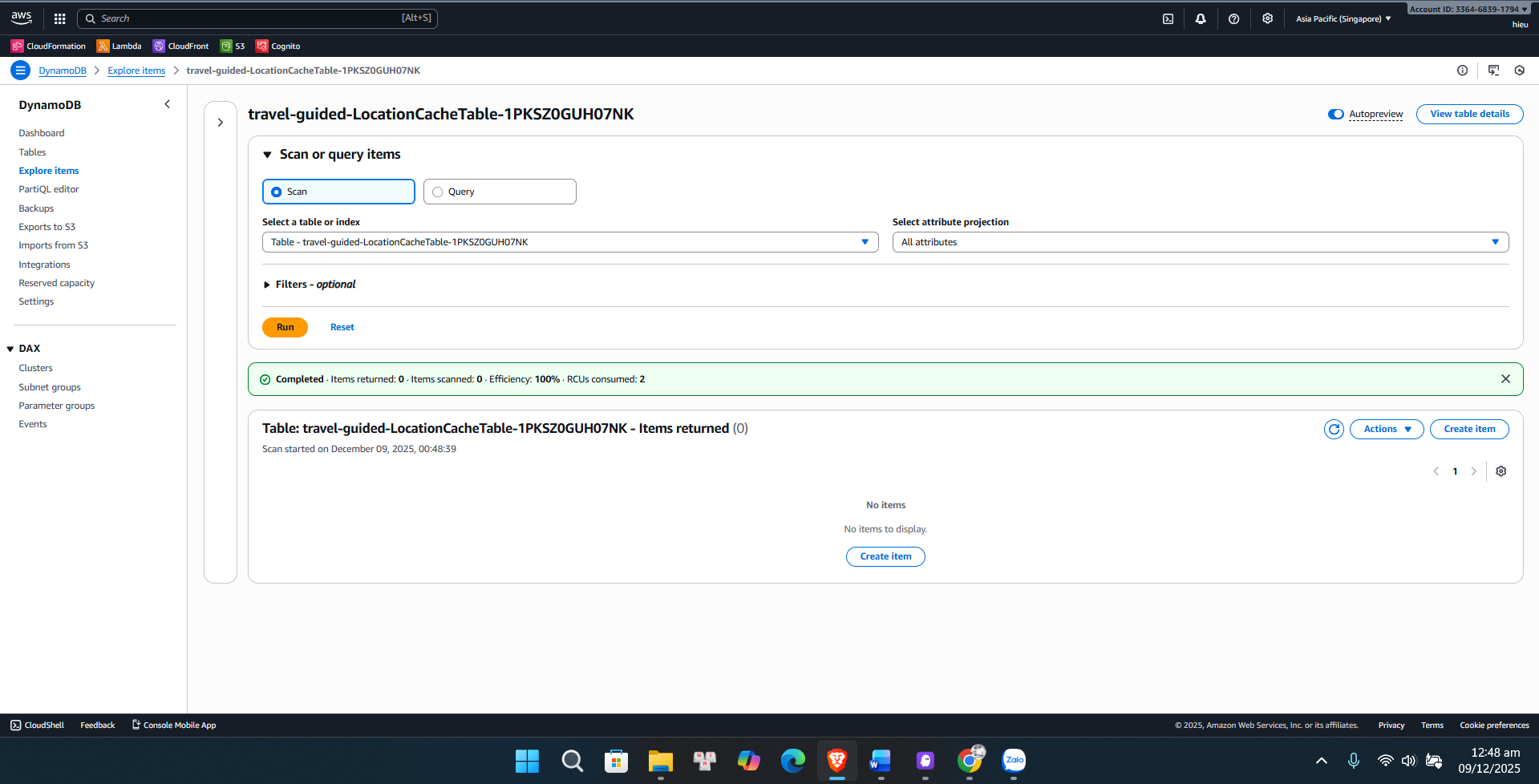

Location Cache Table

Table Schema:

LocationCacheTable:
  Type: AWS::DynamoDB::Table
  Properties:
    TableName: LocationCache
    BillingMode: PAY_PER_REQUEST
    AttributeDefinitions:
      - AttributeName: cacheKey
        AttributeType: S
    KeySchema:
      - AttributeName: cacheKey
        KeyType: HASH
    TimeToLiveSpecification:
      Enabled: true
      AttributeName: expiresAt

Attributes:

  • cacheKey (String, Primary Key): reverse:lat,lng or forward:text
  • data (String): JSON-encoded geocoding result
  • expiresAt (Number): Unix timestamp for TTL
  • createdAt (Number): Creation timestamp

Benefits:

  • Reduces AWS Location Service requests
  • Saves costs (Location Service is request-based)
  • Faster response times
  • Automatic cleanup via TTL

IAM Permissions

Lambda Execution Role

Minimum IAM policy for Lambda:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "geo:SearchPlaceIndexForPosition",
        "geo:SearchPlaceIndexForText"
      ],
      "Resource": "arn:aws:geo:ap-southeast-1:*:place-index/TravelGuidePlaceIndex"
    },
    {
      "Effect": "Allow",
      "Action": [
        "dynamodb:GetItem",
        "dynamodb:PutItem",
        "dynamodb:Query"
      ],
      "Resource": "arn:aws:dynamodb:ap-southeast-1:*:table/LocationCache"
    }
  ]
}

SAM Policy Templates:

Policies:
  - DynamoDBCrudPolicy:
      TableName: !Ref LocationCacheTable
  - Statement:
      - Effect: Allow
        Action:
          - geo:SearchPlaceIndexForPosition
          - geo:SearchPlaceIndexForText
        Resource: !GetAtt TravelGuidePlaceIndex.Arn

Operations & Cost Optimization

Monitoring Cache Performance

Metrics to track:

  • Cache hit ratio
  • Cache miss ratio
  • AWS Location Service request count
  • Average response time

CloudWatch Custom Metrics:

import boto3

cloudwatch = boto3.client('cloudwatch')

def log_cache_metric(metric_name, value):
    cloudwatch.put_metric_data(
        Namespace='TravelGuide/Location',
        MetricData=[
            {
                'MetricName': metric_name,
                'Value': value,
                'Unit': 'Count'
            }
        ]
    )

# Usage
log_cache_metric('CacheHit', 1)
log_cache_metric('CacheMiss', 1)
log_cache_metric('LocationServiceCall', 1)

Cost Optimization Strategies

  1. Increase Cache TTL

    • For stable locations: 90 days
    • For changing data: 7-30 days

  2. Cache Popular Queries

    • Pre-populate cache for common locations
    • Reduce cold start costs

  3. Batch Requests (if applicable)

    • Group multiple geocoding requests
    • Reduce API calls

  4. Monitor Usage

    • Set CloudWatch alarms for high request counts
    • Review monthly Location Service costs

  5. Fallback Strategy

    • Use Nominatim for non-critical requests
    • Reserve AWS Location for premium features

Frontend Integration (Optional)

Using AWS Location Maps

If you want to use AWS Location Maps (instead of OSM/Esri public tiles), you have two approaches:

1. API Key (Amazon Location API Key)

  • Easy integration
  • Suitable for public web
  • Has quota/limits

2. Cognito + SigV4 Signed Requests

  • More secure
  • More complex setup
  • Better for authenticated users

Leaflet Integration Example

import L from 'leaflet';
import { Signer } from '@aws-amplify/core';

// With API Key
const map = L.map('map').setView([10.8231, 106.6297], 13);

L.tileLayer(
  'https://maps.geo.ap-southeast-1.amazonaws.com/maps/v0/maps/{mapName}/tiles/{z}/{x}/{y}?key={apiKey}',
  {
    attribution: '© Amazon Location Service',
    mapName: 'TravelGuideMap',
    apiKey: 'YOUR_API_KEY'
  }
).addTo(map);

// With Cognito (SigV4)
// More complex - requires signing each tile request
// See AWS documentation for full implementation

Troubleshooting

Common Issues

1. No Results from Location Service

Causes:

  • Invalid coordinates
  • Location not in Esri database
  • Incorrect Place Index configuration

Solution:

  • Validate lat/lng ranges (-90 to 90, -180 to 180)
  • Use fallback to Nominatim
  • Check Place Index data source

2. High Costs

Causes:

  • Low cache hit ratio
  • Too many unique queries
  • Short cache TTL

Solution:

  • Increase cache TTL
  • Pre-populate common locations
  • Review query patterns

3. Slow Response Times

Causes:

  • Cold Lambda start
  • Cache miss
  • Network latency

Solution:

  • Use provisioned concurrency for Lambda
  • Pre-warm cache
  • Implement async geocoding for non-critical paths

4. Cache Not Working

Causes:

  • DynamoDB permissions missing
  • TTL not configured
  • Cache key mismatch

Solution:

  • Verify IAM permissions
  • Check DynamoDB TTL settings
  • Debug cache key generation

Best Practices

  1. Always Use Cache

    • Reduces costs significantly
    • Improves performance

  2. Implement Fallback

    • Nominatim for reliability
    • Handle service outages gracefully

  3. Validate Input

    • Check coordinate ranges
    • Sanitize text queries

  4. Monitor Usage

    • Track request counts
    • Set cost alerts

  5. Optimize TTL

    • Longer for stable data
    • Shorter for dynamic data

  6. Log Cache Performance

    • Hit/miss ratios
    • Identify optimization opportunities

Key Takeaways

  1. AWS Location Service provides geocoding without managing infrastructure
  2. DynamoDB cache dramatically reduces costs
  3. Fallback strategy ensures reliability
  4. Proper IAM permissions are essential
  5. Monitoring helps optimize performance and costs
  6. Cache TTL balances freshness and cost
