CloudFront CDN Configuration

Amazon CloudFront (Static + Dynamic)

In the Travel Guide project, CloudFront serves as the CDN for:

  • Static web (React build) from StaticSiteBucket
  • Images from ArticleImagesBucket with path patterns

The “dynamic” part (API) currently runs directly through API Gateway URL. This workshop describes (1) deployed static setup + (2) recommended dynamic model if you want to route API through CloudFront.

Architecture Overview

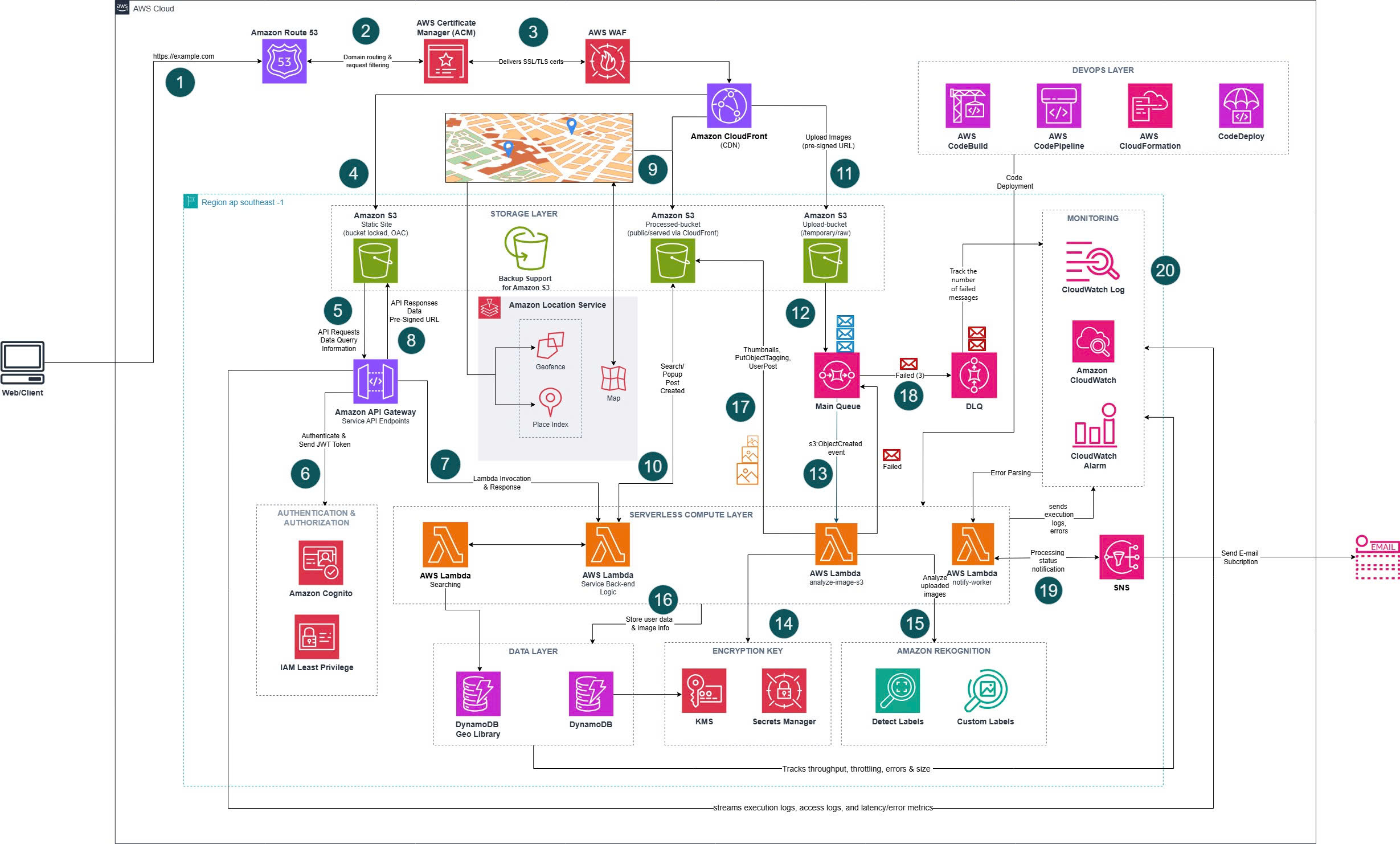

CloudFront Architecture

The system uses CloudFront as a unified entry point for both static content and media files, providing:

  • Global content delivery
  • HTTPS enforcement
  • Compression
  • Caching optimization

CloudFront Static — Host React from Private S3

Origin 1: S3 StaticSiteBucket (Private)

Configuration:

  • Access via Origin Access Identity (OAI)
  • DefaultRootObject: index.html
  • ViewerProtocolPolicy: redirect-to-https
  • Compression enabled

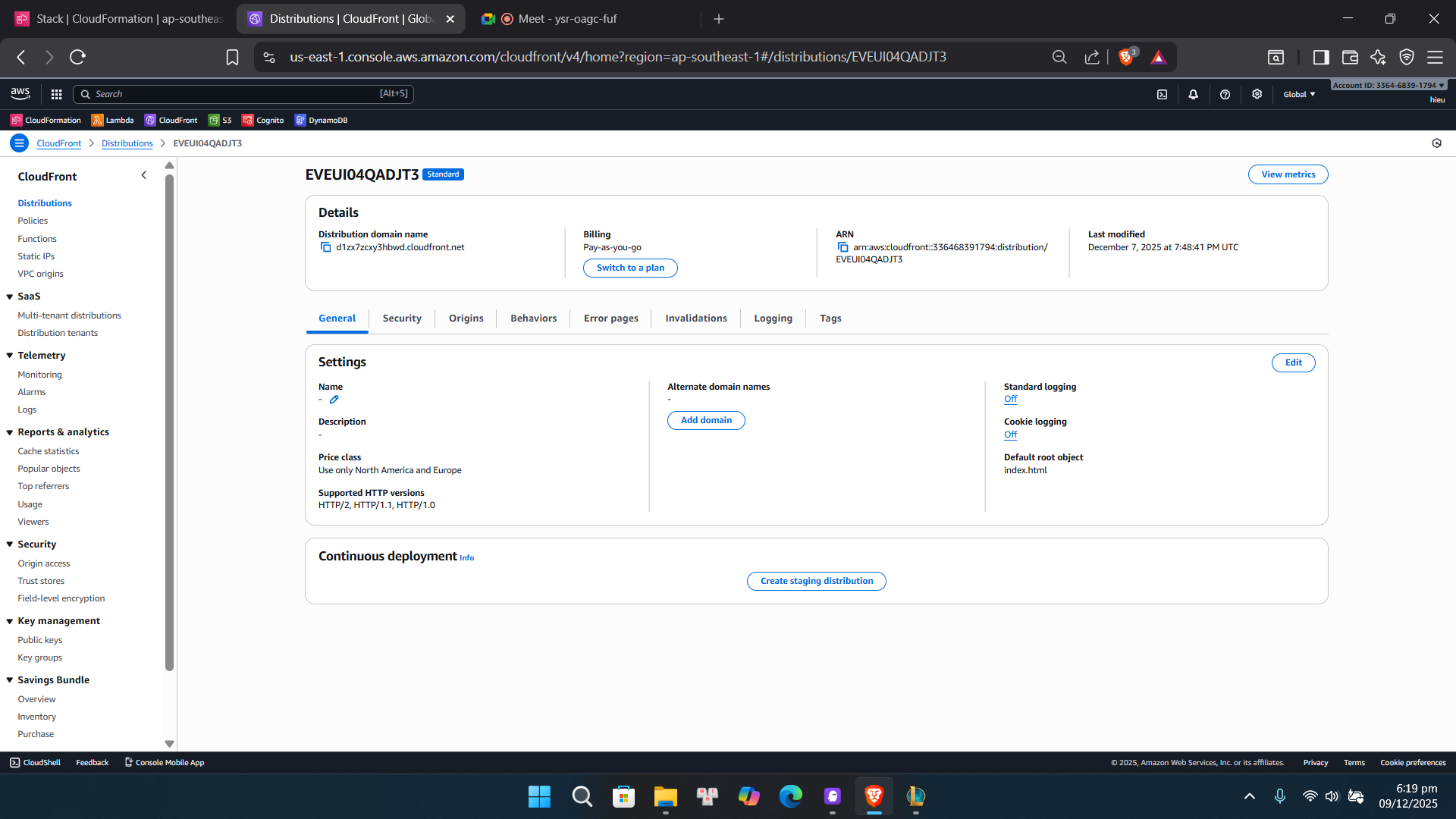

CloudFront Distribution Overview

Origin Access Identity (OAI) Setup

OAI allows CloudFront to access private S3 buckets securely without making them public.

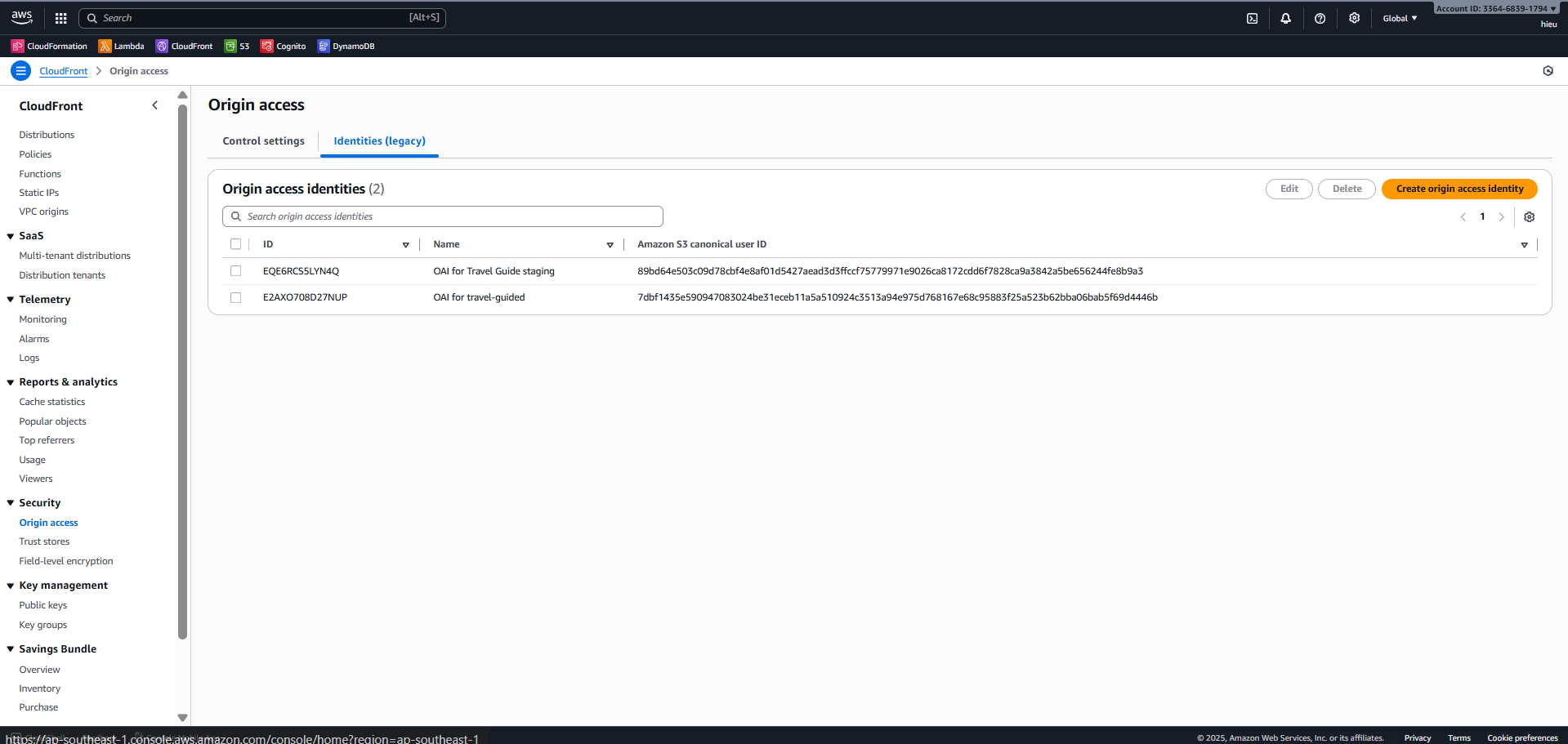

CloudFront OAI Setup

S3 Bucket Policy for OAI:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowCloudFrontOAI",
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::cloudfront:user/CloudFront Origin Access Identity <OAI-ID>"
      },
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::static-site-bucket/*"
    }
  ]
}

Deploying Frontend

Build and Upload

cd travel-guide-frontend
npm install
npm run build

# Upload build/ to StaticSiteBucket
aws s3 sync build/ s3://<StaticSiteBucketName>/ --delete

Invalidation After Deploy

After each frontend deployment, create an invalidation so users receive the latest version:

aws cloudfront create-invalidation \
  --distribution-id <DISTRIBUTION_ID> \
  --paths "/*"

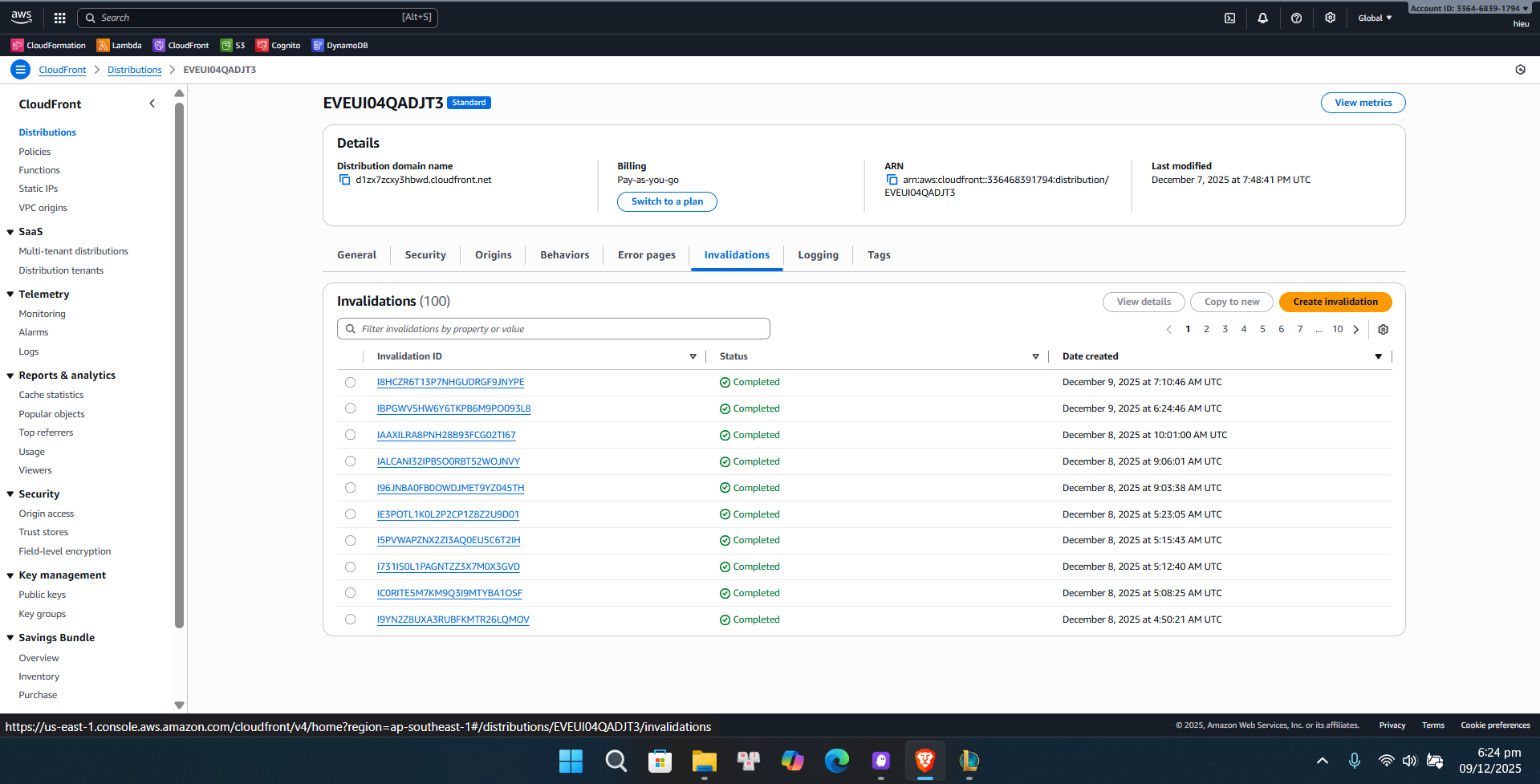

CloudFront Invalidation

Best Practice:

  • Invalidate only changed paths to save costs
  • Use versioned filenames (e.g., app.v123.js) to avoid invalidation
  • Invalidate index.html and other non-hashed files

CloudFront for Images — Cache and Accelerate Media Loading

Origin 2: S3 ArticleImagesBucket (Private)

Cache behaviors by path:

  • articles/*
  • thumbnails/*
  • avatars/*
  • covers/*

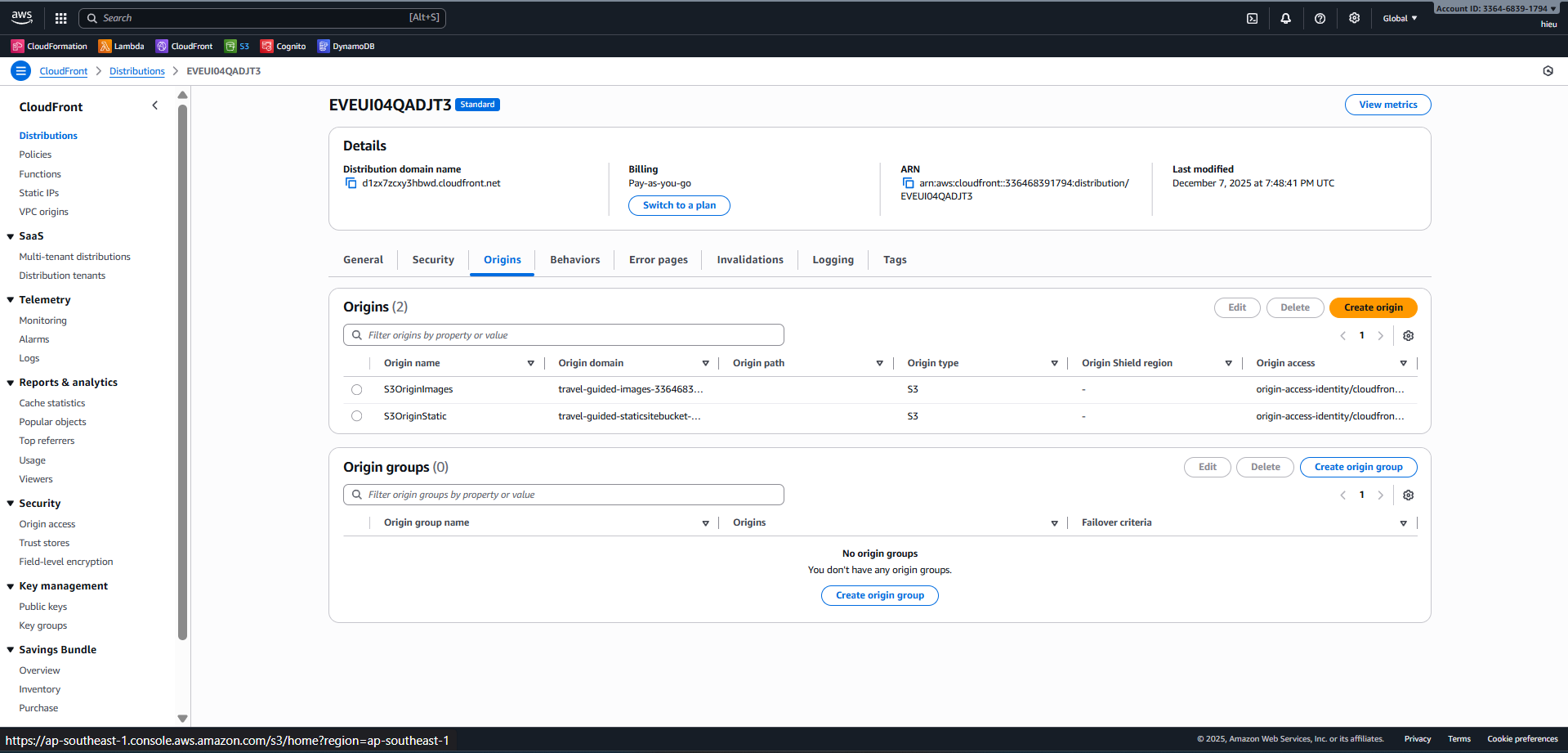

CloudFront Origins Configuration

Cache Behaviors Configuration

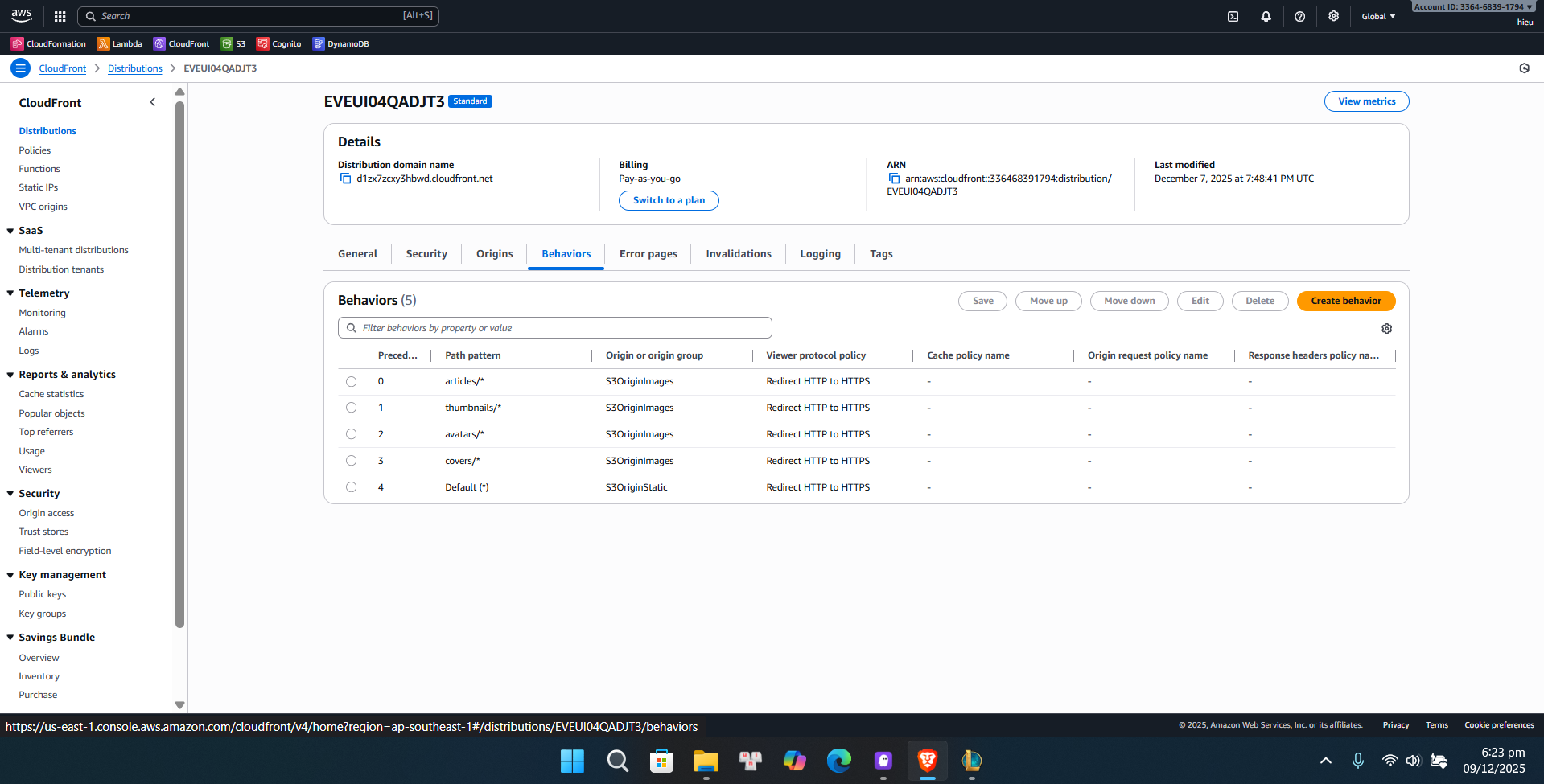

CloudFront Cache Behaviors

When frontend needs to display images:

  • Construct URL like: https://<cloudfront-domain>/<key>
  • Example: https://d1zx7zcxy3hbwd.cloudfront.net/articles/...

Benefits:

  • Images cached at edge locations globally
  • Reduced S3 GET requests
  • Faster load times for users
  • Automatic HTTPS

Cache Strategy Recommendations

Static Web

index.html:

  • TTL: Low (0-60 seconds) or use custom cache-control
  • Reason: Ensure users get latest app version

Hashed assets (js/css):

  • TTL: High (1 week - 1 year)
  • Reason: Filenames change with content, safe to cache long-term

Example Cache-Control Headers:

# index.html
Cache-Control: no-cache, must-revalidate

# app.abc123.js
Cache-Control: public, max-age=31536000, immutable

Images

Configuration:

  • TTL: High (images rarely change)
  • If image changes with same key → change key (best practice) or invalidate

Recommended TTL:

  • Min: 1 day
  • Default: 7 days
  • Max: 1 year

CloudFront Dynamic — Recommended Model (Optional)

If you want “dynamic” (API) to run through CloudFront, add:

Origin 3: API Gateway Endpoint (Custom Origin)

Configuration:

  • Behavior: /api/* (or /Prod/*) → API origin
  • Cache: Disabled or very low TTL
  • Forward headers: Authorization + query strings
  • Forward cookies: As needed

Goals:

  • Single domain for both web + API
  • Reduce global latency for API (depending on use case)

Note: Configuring API through CloudFront requires proper path normalization and CORS setup. Also consider caching strategy to avoid “wrong cache” based on tokens.

Monitoring and Metrics

CloudWatch Metrics

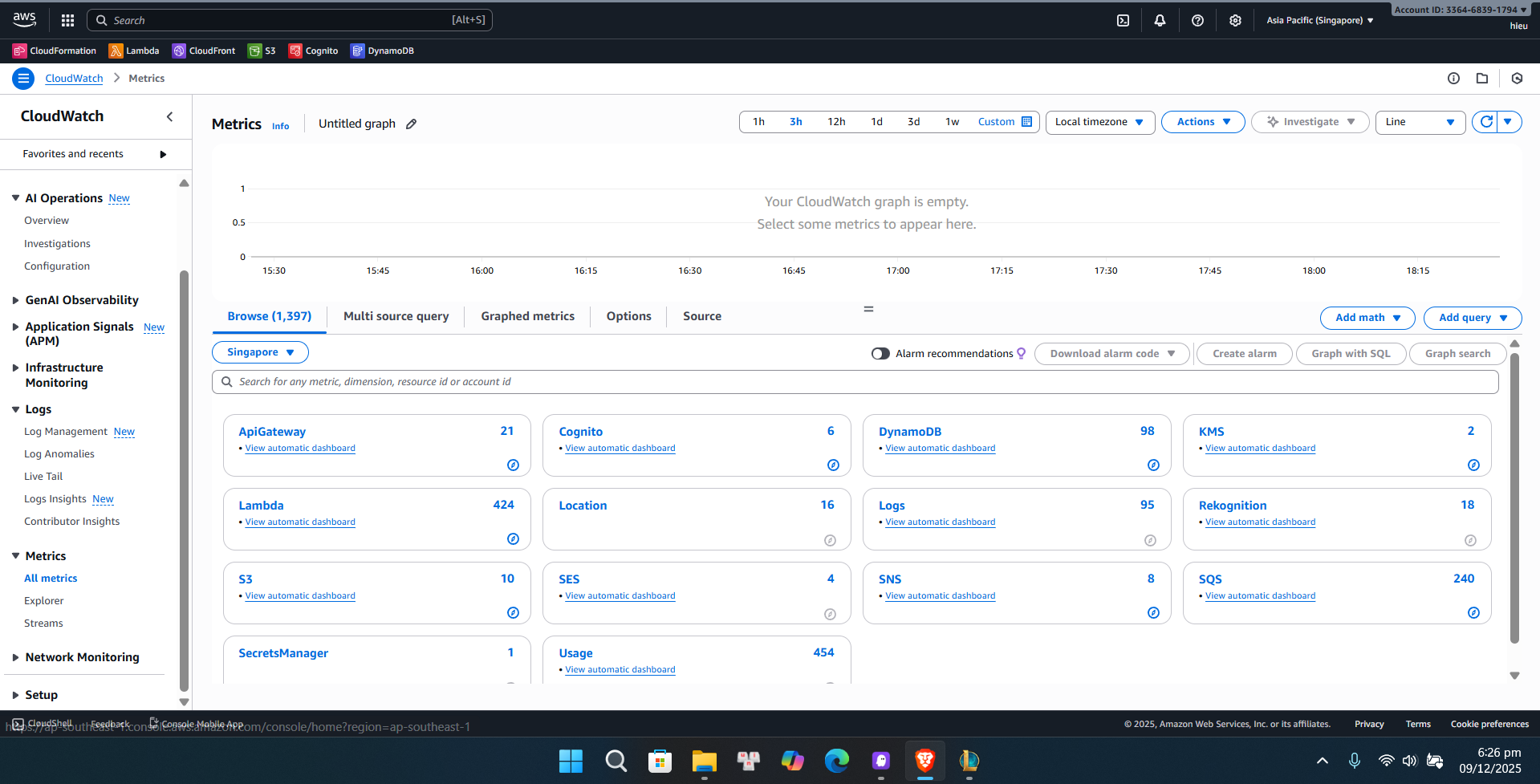

CloudFront Metrics

Key metrics to monitor:

  1. Cache Hit Ratio

    • Target: > 80% for static content
    • Low ratio indicates caching issues

  2. 4xx Error Rate

    • Common: 403 (access denied), 404 (not found)
    • Check OAI permissions and file paths

  3. 5xx Error Rate

    • Origin errors
    • Check S3 availability

  4. Bytes Downloaded

    • Track bandwidth usage
    • Identify popular content

  5. Requests

    • Total requests per time period
    • Identify traffic patterns

Operations & Troubleshooting

Common Issues

1. 403 Access Denied

Causes:

  • OAI not configured correctly
  • S3 bucket policy missing CloudFront permission
  • Object doesn’t exist

Solution:

  • Verify OAI ID in bucket policy
  • Check object exists in S3
  • Test direct S3 access (temporarily)

2. Stale Content After Deploy

Causes:

  • No invalidation created
  • Browser cache

Solution:

  • Create CloudFront invalidation
  • Use versioned filenames
  • Set appropriate Cache-Control headers

3. Slow First Load

Cause:

  • Cold cache (first request to edge location)

Expected behavior:

  • First request: Slower (origin fetch)
  • Subsequent requests: Fast (cached)

4. High Origin Requests

Causes:

  • Low cache hit ratio
  • TTL too short
  • Query strings not handled properly

Solution:

  • Increase TTL for static content
  • Configure query string forwarding
  • Use cache key normalization

Security Best Practices

  1. HTTPS Only

    • Redirect HTTP to HTTPS
    • Use TLS 1.2 minimum

  2. Origin Access Identity

    • Never make S3 buckets public
    • Use OAI for CloudFront access

  3. Geo Restrictions (Optional)

    • Whitelist/blacklist countries if needed

  4. AWS WAF Integration (Optional)

    • Protect against common web exploits
    • Rate limiting

  5. Signed URLs/Cookies (Optional)

    • For premium/private content
    • Time-limited access

Cost Optimization

Strategies:

  1. High Cache Hit Ratio

    • Reduces origin requests
    • Lower S3 GET costs

  2. Compression

    • Reduces data transfer
    • Faster load times

  3. Price Class Selection

    • Use fewer edge locations if users are regional
    • Price Class 100 (US, Europe, Asia)

  4. Reserved Capacity (High traffic)

    • Contact AWS for discounts

  5. Monitor Invalidations

    • First 1,000 paths/month free
    • Use versioned filenames instead

Key Takeaways

  1. CloudFront accelerates content delivery globally
  2. OAI secures private S3 access
  3. Cache behaviors optimize different content types
  4. Invalidation ensures users get latest content
  5. Monitoring helps identify and resolve issues
  6. Proper TTL balances freshness and performance
