S3 Pre-signed URL Upload

Amazon S3 Upload Web (Pre-signed URL)

Why Use Pre-signed URLs?

Instead of uploading images through the backend (consuming bandwidth/risking timeout), we use a two-step approach:

1. Frontend requests a temporary upload URL from backend
2. Frontend uploads directly to S3

Benefits:

• Fast, reduces backend load
• Time-limited URL (security)
• No AWS credentials needed on client
• Direct upload to S3

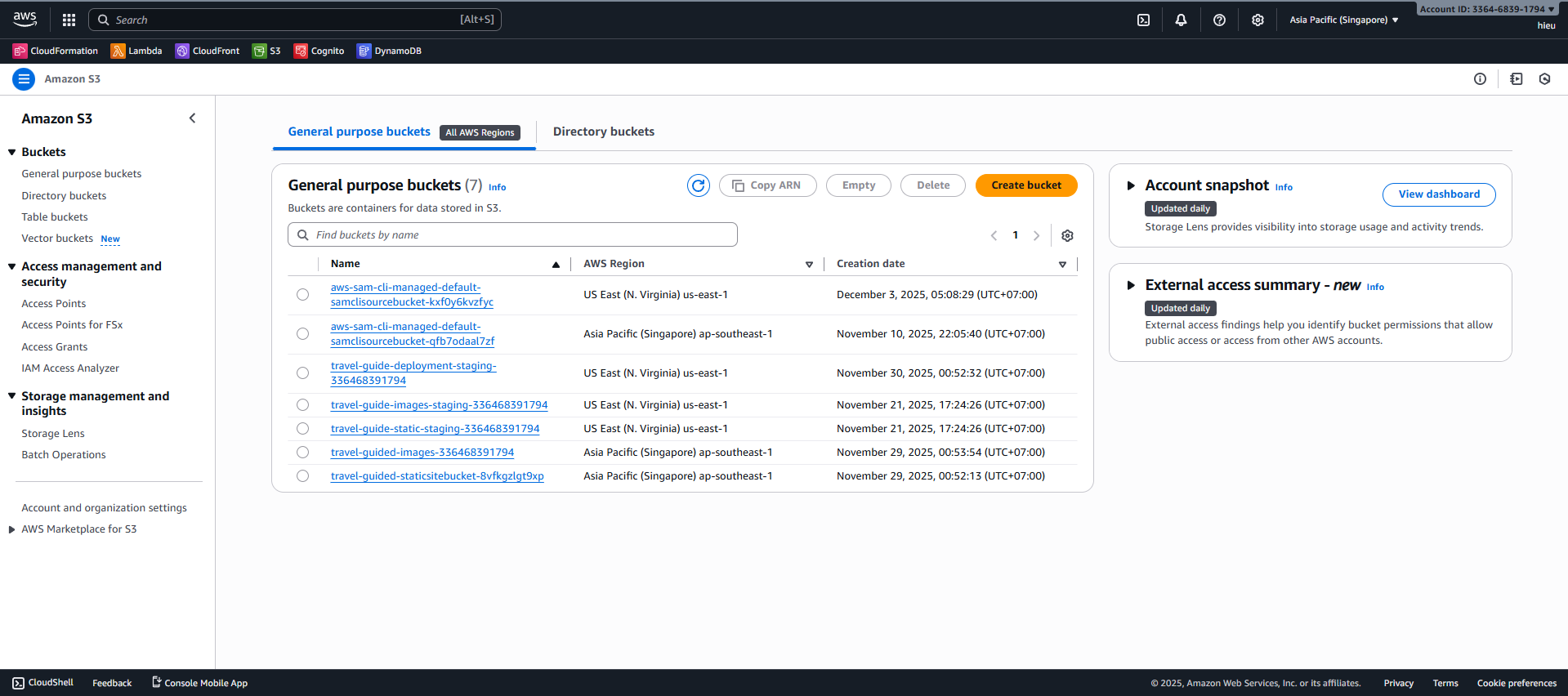

S3 Bucket Configuration

ArticleImagesBucket Setup

Key configurations:

• Versioning: Enabled
• CORS: Allows uploads from frontend
• Access: Private (accessed via CloudFront OAI)
• Event notifications: Triggers SQS for image processing

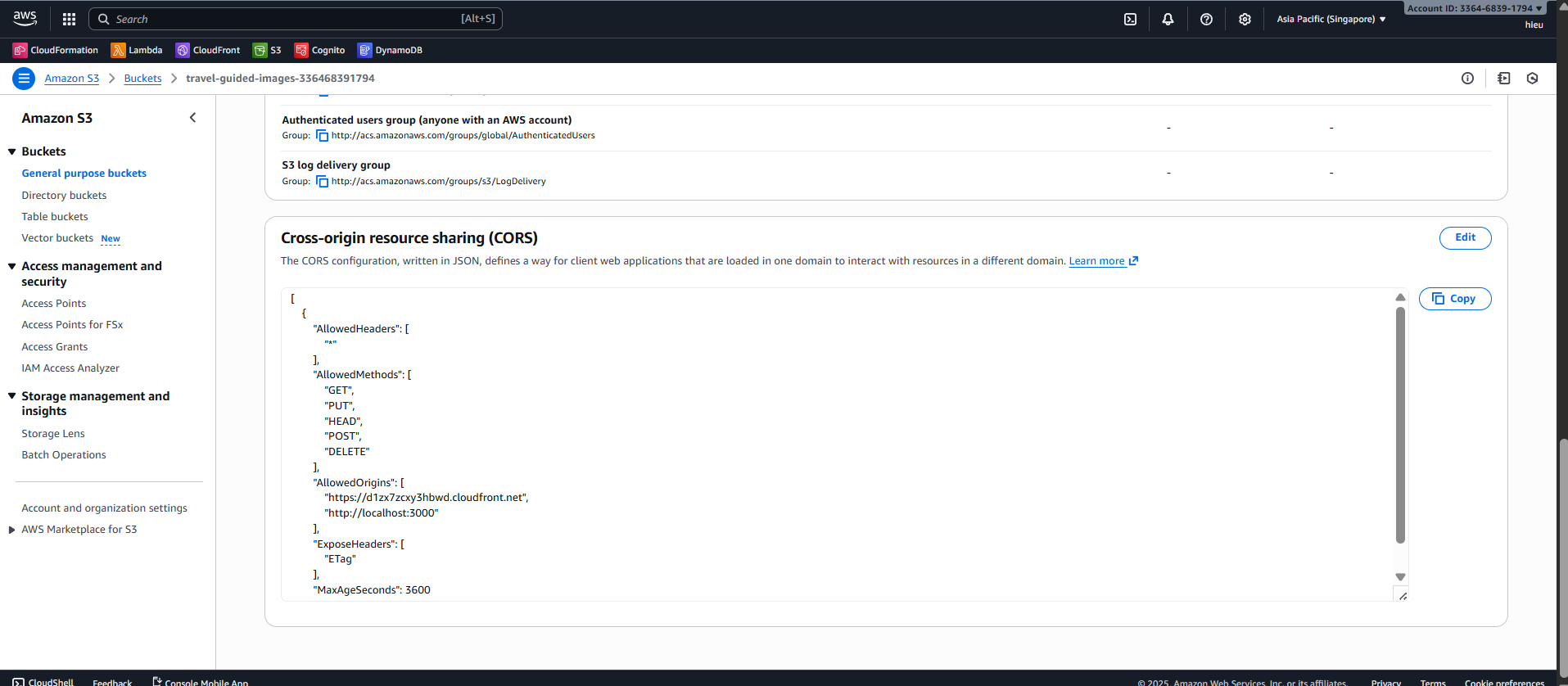

CORS Configuration

[
  {
    "AllowedHeaders": ["*"],
    "AllowedMethods": ["GET", "PUT", "POST", "DELETE", "HEAD"],
    "AllowedOrigins": ["*"],
    "ExposeHeaders": ["ETag"]
  }
]

Note: In production, replace "*" with specific domains.

API: Generate Pre-signed URL

Lambda Function

Function: GetUploadUrlFunction
API Path: POST /upload-url
Authentication: Cognito JWT required

Request Flow

1. Frontend calls POST {API_BASE}/upload-url with JWT token
2. Backend generates pre-signed URL
3. Backend returns:
   • uploadUrl: Temporary S3 upload URL
   • key: Object path in S3
   • expiresIn: 900 seconds (15 minutes)

Response Example

{
  "uploadUrl": "https://s3.ap-southeast-1.amazonaws.com/...",
  "key": "articles/<articleId>/raw/<uuid>.jpg",
  "articleId": "<uuid>",
  "expiresIn": 900
}

Lambda Code Structure

import boto3
import uuid
from datetime import datetime

s3_client = boto3.client('s3')
BUCKET_NAME = os.environ['ARTICLE_IMAGES_BUCKET']

def lambda_handler(event, context):
    # Get user info from Cognito
    user_id = event['requestContext']['authorizer']['claims']['sub']

    # Generate unique key
    article_id = str(uuid.uuid4())
    file_key = f"articles/{article_id}/raw/{uuid.uuid4()}.jpg"

    # Generate pre-signed URL
    upload_url = s3_client.generate_presigned_url(
        'put_object',
        Params={
            'Bucket': BUCKET_NAME,
            'Key': file_key,
            'ContentType': 'image/jpeg'
        },
        ExpiresIn=900  # 15 minutes
    )

    return {
        'statusCode': 200,
        'body': json.dumps({
            'uploadUrl': upload_url,
            'key': file_key,
            'articleId': article_id,
            'expiresIn': 900
        })
    }

Frontend Upload Implementation

React Example

// Step 1: Get pre-signed URL
const getUploadUrl = async () => {
  const response = await fetch(`${API_BASE}/upload-url`, {
    method: 'POST',
    headers: {
      'Authorization': `Bearer ${accessToken}`,
      'Content-Type': 'application/json'
    }
  });

  return await response.json();
};

// Step 2: Upload file directly to S3
const uploadImage = async (file) => {
  // Get upload URL
  const { uploadUrl, key, articleId } = await getUploadUrl();

  // Upload to S3
  const uploadResponse = await fetch(uploadUrl, {
    method: 'PUT',
    headers: {
      'Content-Type': file.type
    },
    body: file
  });

  if (uploadResponse.ok) {
    console.log('Upload successful!');
    return { key, articleId };
  } else {
    throw new Error('Upload failed');
  }
};

// Usage
const handleFileSelect = async (event) => {
  const file = event.target.files[0];
  try {
    const result = await uploadImage(file);
    console.log('Image uploaded:', result);
  } catch (error) {
    console.error('Upload error:', error);
  }
};

IAM Permissions

Lambda Execution Role

The Lambda function needs s3:PutObject permission:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:PutObjectAcl"
      ],
      "Resource": "arn:aws:s3:::article-images-bucket/*"
    }
  ]
}

Note: Frontend doesn’t need AWS credentials because it uses pre-signed URLs.

Operations & Troubleshooting

Common Issues

1. 403 AccessDenied on PUT

Causes:

• URL expired (> 15 minutes)
• Content-Type mismatch (if enforced in pre-signed URL)
• Bucket policy blocking access

Solution:

• Request new upload URL
• Ensure Content-Type matches
• Check bucket policy

2. CORS Error

Causes:

• CORS not configured on bucket
• Wrong method/headers in request

Solution:

• Verify CORS configuration on ArticleImagesBucket
• Ensure frontend sends correct headers
• Check browser console for specific CORS error

3. Object Uploaded but Can’t Load

Cause:

• Bucket is private

Solution:

• Load images via CloudFront (OAI)
• Or generate pre-signed download URLs

Monitoring

CloudWatch Metrics to track:

• Number of pre-signed URL requests
• Upload success/failure rate
• Average upload time
• S3 PUT request count

Security Best Practices

1. Time-limited URLs: Keep expiration short (15 minutes)
2. Content-Type validation: Enforce image types only
3. File size limits: Set max file size in API
4. User authentication: Always require JWT token
5. Bucket encryption: Enable S3 encryption at rest
6. Logging: Enable S3 access logs for audit

Cost Optimization

Strategies:

• Use S3 Intelligent-Tiering for infrequently accessed images
• Enable S3 Transfer Acceleration for global users (optional)
• Set lifecycle policies to delete incomplete multipart uploads
• Monitor S3 storage costs with Cost Explorer

Key Takeaways

1. Pre-signed URLs enable secure, direct uploads without credentials
2. CORS configuration is essential for browser uploads
3. Time-limited URLs enhance security
4. CloudFront should be used for serving images (not direct S3)
5. IAM least privilege - Lambda only needs PutObject permission
