IAM Roles & Policies

IAM - Identity & Access Management

Overview

IAM is the service for managing access permissions (identity & access). In the Travel Guide workshop, IAM is used to:

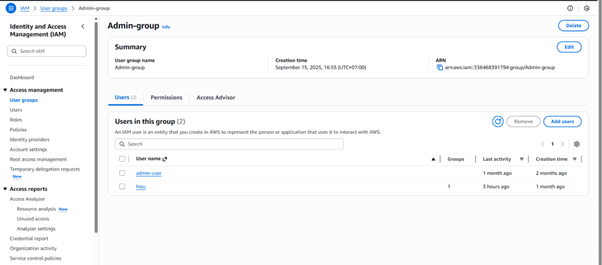

• Create users/groups for developers (standard credentials, MFA)
• Create roles for Lambda, ECS, EC2 with necessary permissions (least privilege)
• Create policies allowing Lambda to access S3/DynamoDB/CloudWatch/Cognito Admin
• Configure trust policies (who can assume roles)
• Grant API Gateway permission to invoke Lambda (resource-based permission)
• (Optional) Create roles/permissions for CI/CD

What is IAM used for in our project?

In the Travel Guide architecture:

• Lambda reads/writes DynamoDB
• Lambda uploads images to S3
• Lambda calls Rekognition to analyze images
• Lambda writes logs to CloudWatch

Preparation Steps

AWS Account Requirements

Prerequisites:

• 1 AWS account
• Permissions to:
  • Create IAM Roles
  • Create Lambda functions
  • Create DynamoDB/S3 resources

Role for API Gateway

Typically, API Gateway doesn’t need a separate IAM role to authorize User Pool. However, for API Gateway to invoke Lambda from integration, you need to add permission to Lambda (resource-based) — usually done via CLI or Console auto-create.

Role for Lambda Functions

Purpose: Lambda needs to write logs, access S3/DynamoDB, call Cognito Admin API (if backend manages users).

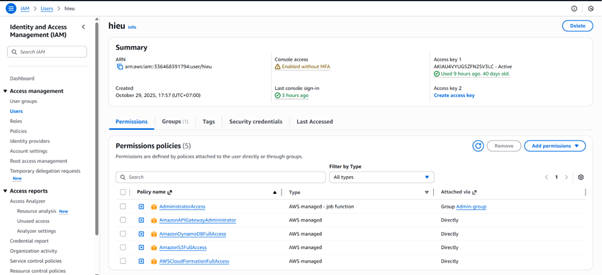

Creating Lambda Execution Role

Console Steps:

1. IAM → Roles → Create role
2. AWS service → Lambda → Next

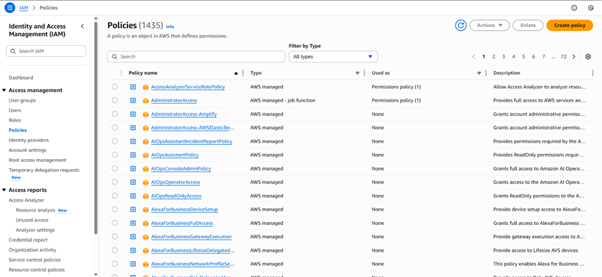

3. Attach managed policies:
   • AWSLambdaBasicExecutionRole (CloudWatch logs)
   • AmazonDynamoDBFullAccess (replace with restricted table-specific policy)
   • AmazonS3ReadOnlyAccess or custom S3 policy

DynamoDB Permissions

Policy for Article CRUD operations:

{
  "Effect": "Allow",
  "Action": [
    "dynamodb:GetItem",
    "dynamodb:PutItem",
    "dynamodb:UpdateItem",
    "dynamodb:DeleteItem",
    "dynamodb:Query"
  ],
  "Resource": "arn:aws:dynamodb:*:*:table/TravelGuide-*"
}

Why these permissions?

• Lambda creates/edits/deletes articles
• Only access specific tables needed
• Follows least privilege principle

S3 Permissions (Images)

Policy for image upload/download:

{
  "Effect": "Allow",
  "Action": [
    "s3:PutObject",
    "s3:GetObject"
  ],
  "Resource": "arn:aws:s3:::travel-guide-*/\*"
}

Use cases:

• Upload user-submitted images
• Retrieve images for display
• Process images for thumbnails

Rekognition Permissions

Policy for image analysis:

{
  "Effect": "Allow",
  "Action": [
    "rekognition:DetectLabels",
    "rekognition:DetectModerationLabels"
  ],
  "Resource": "*"
}

Use cases:

• Detect labels in travel photos
• Content moderation for inappropriate images
• Auto-tagging images

CloudWatch Logs Permissions

Policy for logging:

{
  "Effect": "Allow",
  "Action": [
    "logs:CreateLogGroup",
    "logs:CreateLogStream",
    "logs:PutLogEvents"
  ],
  "Resource": "arn:aws:logs:*:*:*"
}

Why needed?

• Debug Lambda functions
• Monitor application behavior
• Track errors and performance

Complete Lambda Execution Role

Combined policy example:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "logs:CreateLogGroup",
        "logs:CreateLogStream",
        "logs:PutLogEvents"
      ],
      "Resource": "arn:aws:logs:*:*:*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "dynamodb:GetItem",
        "dynamodb:PutItem",
        "dynamodb:UpdateItem",
        "dynamodb:DeleteItem",
        "dynamodb:Query",
        "dynamodb:Scan"
      ],
      "Resource": "arn:aws:dynamodb:*:*:table/TravelGuide-*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:DeleteObject"
      ],
      "Resource": "arn:aws:s3:::travel-guide-*/*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "rekognition:DetectLabels",
        "rekognition:DetectModerationLabels"
      ],
      "Resource": "*"
    }
  ]
}

Trust Policy

Who can assume this role?

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "lambda.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

This allows Lambda service to assume the role and use its permissions.

Best Practices

1. Least Privilege Principle

• Only grant permissions actually needed
• Avoid using * in Resource ARNs when possible
• Use specific actions instead of *

2. Separate Roles by Function

• Different Lambda functions = different roles
• Article service role ≠ Media service role
• Easier to audit and manage

3. Use Managed Policies When Appropriate

• AWSLambdaBasicExecutionRole for logging
• Custom policies for business logic
• Combine managed + custom policies

4. Regular Audits

• Review unused permissions
• Check for overly permissive policies
• Use IAM Access Analyzer

5. Tag Resources

{
  "Tags": [
    {
      "Key": "Service",
      "Value": "ArticleService"
    },
    {
      "Key": "Environment",
      "Value": "staging"
    }
  ]
}

Resource-Based Permissions

API Gateway Invoke Lambda

Lambda resource policy:

{
  "Effect": "Allow",
  "Principal": {
    "Service": "apigateway.amazonaws.com"
  },
  "Action": "lambda:InvokeFunction",
  "Resource": "arn:aws:lambda:*:*:function:CreateArticle",
  "Condition": {
    "ArnLike": {
      "AWS:SourceArn": "arn:aws:execute-api:*:*:*/*/POST/articles"
    }
  }
}

This allows API Gateway to invoke the Lambda function.

Key Takeaways

1. IAM Roles define what AWS services can do
2. Policies specify exact permissions
3. Trust Policies define who can assume roles
4. Least Privilege is critical for security
5. Separate roles for different services
6. Regular audits prevent permission creep
7. Resource-based policies for cross-service access

Common Pitfalls

❌ Using Administrator Access

{
  "Effect": "Allow",
  "Action": "*",
  "Resource": "*"
}

✅ Use Specific Permissions

{
  "Effect": "Allow",
  "Action": ["dynamodb:GetItem", "dynamodb:PutItem"],
  "Resource": "arn:aws:dynamodb:*:*:table/Articles"
}

❌ Sharing Roles Across Services

• One role for all Lambda functions

✅ Separate Roles

• ArticleServiceRole
• MediaServiceRole
• AIServiceRole
