Gallery Service - Photo Discovery

Gallery Service Overview

Gallery Service provides photo discovery functionality through trending tags and tag-based search. It consumes data from AI Service’s label detection and presents it through user-friendly APIs.

Purpose and Use Cases

Main Functions:

1. Trending Tags: Display most popular tags based on photo count
2. Photo Gallery: Search photos by specific tags

Position in System:

• Consumes data from AI Service (auto-detected tags)
• Provides API for Frontend to display gallery
• Reads from DynamoDB tables populated by AI Service

Architecture

Components Overview

The Gallery Service consists of:

• 2 Lambda Functions: GetTrendingTags, GetArticlesByTag
• 1 API Gateway: REST API with 2 endpoints
• 1 Lambda Layer: Shared dependencies (boto3, CORS utilities)
• 2 DynamoDB Tables: GalleryPhotosTable, GalleryTrendsTable (from Core Stack)

Data Flow

User Uploads Image
    ↓
Article Service → S3 Bucket
    ↓
S3 Event → AI Service
    ↓
Label Detection
    ↓
├─→ Save to GalleryPhotosTable
└─→ Update GalleryTrendsTable (increment count)
    ↓
Gallery Service (Read-only)
    ↓
Frontend Display

Dependencies with Core Stack

Gallery Service imports from Core Stack:

# From core-infra stack
Imports:
  - GalleryPhotosTableName
  - GalleryTrendsTableName

Deployment Order:

1. Core Stack (creates tables)
2. AI Service (populates tables)
3. Gallery Service (reads tables)

Lambda Functions

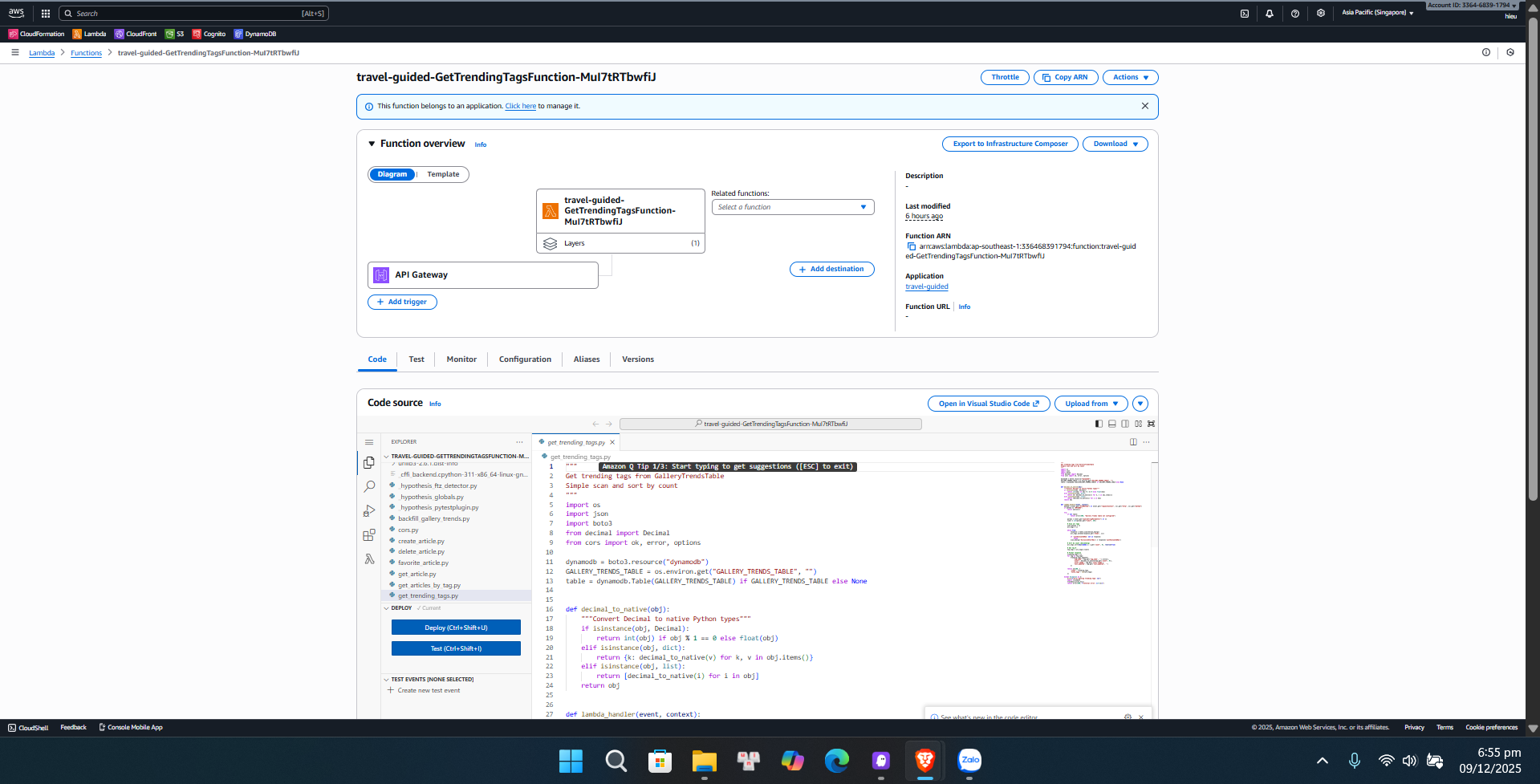

Function 1: GetTrendingTagsFunction

Purpose: Return list of trending tags sorted by popularity

Configuration:

• Runtime: Python 3.11
• Timeout: 30 seconds
• Memory: 512 MB
• Handler: get_trending_tags.lambda_handler

Logic Flow:

1. Parse query parameters (limit)
2. Scan all tags from GalleryTrendsTable
3. Sort by count (descending) in-memory
4. Return top N tags

Code Structure:

def lambda_handler(event, context):
    # Parse parameters
    limit = int(params.get("limit", 20))

    # Scan all tags
    all_tags = []
    while True:
        response = table.scan(**scan_kwargs)
        all_tags.extend(response.get('Items', []))
        if 'LastEvaluatedKey' not in response:
            break

    # Sort by count
    all_tags.sort(key=lambda x: x.get('count', 0), reverse=True)

    # Return top N
    return {
        'statusCode': 200,
        'body': json.dumps({
            'items': all_tags[:limit],
            'total_tags': len(all_tags)
        })
    }

Response Example:

{
  "items": [
    {
      "tag_name": "Beach",
      "count": 150,
      "cover_image": "articles/abc123/image.jpg",
      "last_updated": "2024-01-15T10:30:00Z"
    },
    {
      "tag_name": "Mountain",
      "count": 120,
      "cover_image": "articles/def456/image.jpg",
      "last_updated": "2024-01-14T15:20:00Z"
    }
  ],
  "total_tags": 500
}

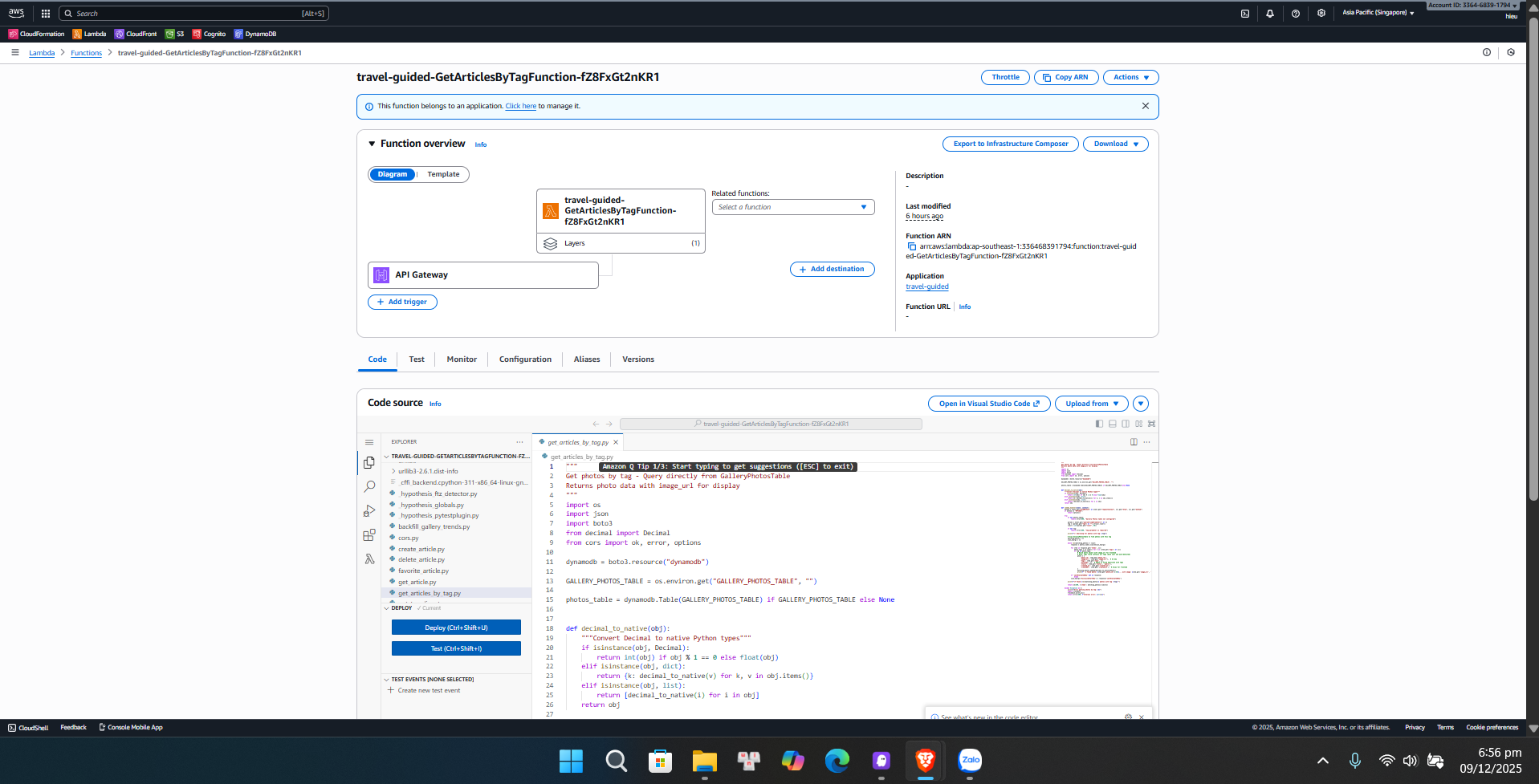

Function 2: GetArticlesByTagFunction

Purpose: Search photos with specific tag

Configuration:

• Runtime: Python 3.11
• Timeout: 30 seconds
• Memory: 512 MB
• Handler: get_articles_by_tag.lambda_handler

Logic Flow:

1. Parse and validate tag parameter
2. Scan GalleryPhotosTable
3. Filter photos with matching tag (in-memory)
4. Limit results
5. Return photos

Code Structure:

def lambda_handler(event, context):
    # Validate parameters
    tag = params.get("tag", "").strip().lower()
    limit = int(params.get("limit", 50))

    if not tag:
        return {
            'statusCode': 400,
            'body': json.dumps({'error': 'tag parameter is required'})
        }

    # Scan and filter
    matching_photos = []
    while len(matching_photos) < limit:
        response = photos_table.scan(**scan_kwargs)

        for item in response.get('Items', []):
            photo_tags = [t.lower() for t in item.get('tags', [])]
            if tag in photo_tags:
                matching_photos.append(item)

        if 'LastEvaluatedKey' not in response:
            break

    return {
        'statusCode': 200,
        'body': json.dumps({'items': matching_photos[:limit]})
    }

Response Example:

{
  "items": [
    {
      "photo_id": "article-123-image-1",
      "image_url": "articles/abc123/image.jpg",
      "tags": ["beach", "sunset", "ocean"],
      "status": "public",
      "created_at": "2024-01-15T10:30:00Z"
    }
  ]
}

Data Models

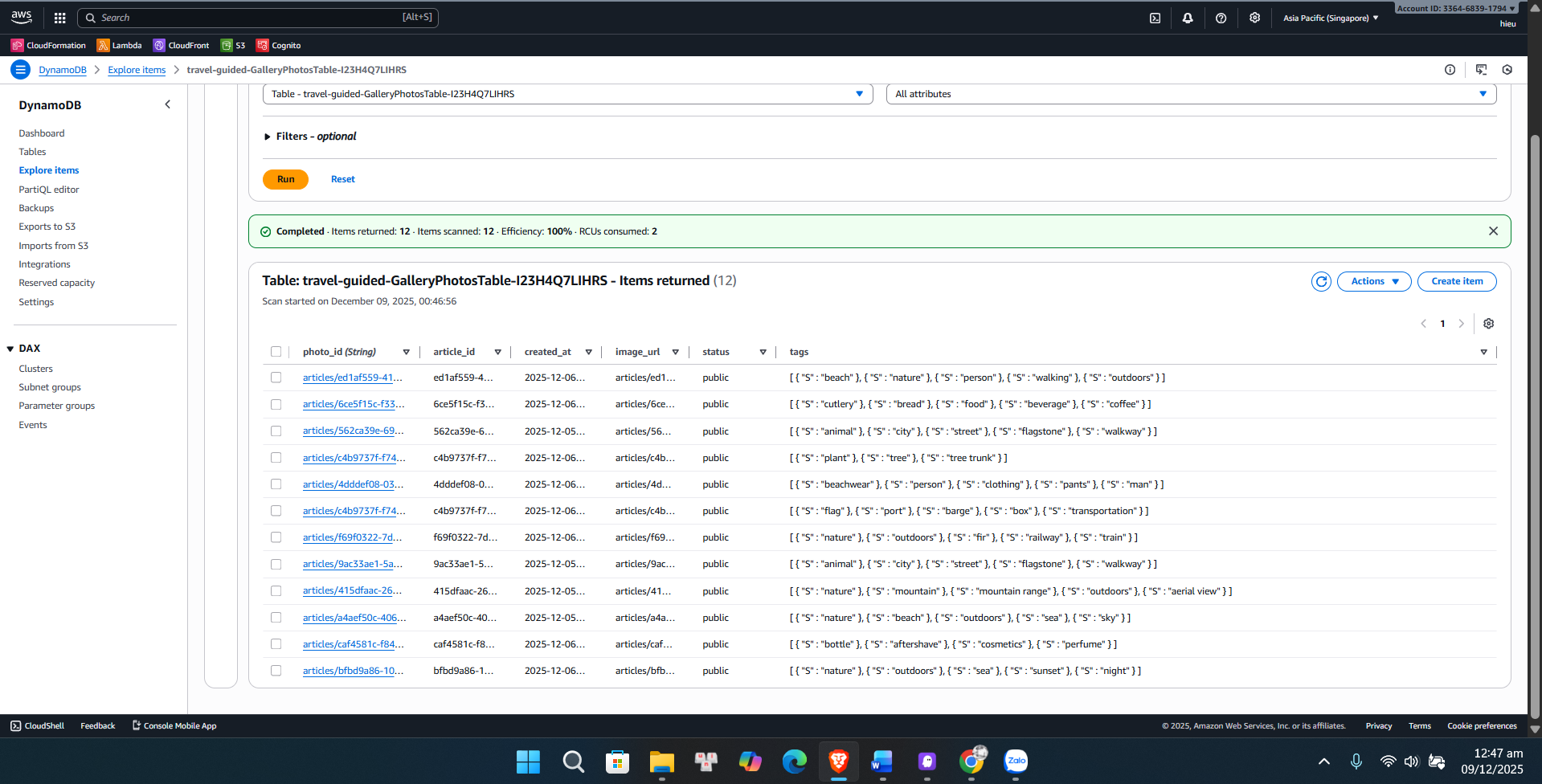

GalleryPhotosTable

Purpose: Store photo metadata and tags for gallery display

Schema:

Indexes:

• Primary Key: photo_id
• No GSIs (Global Secondary Indexes)

Data Population:

• Populated by AI Service’s save_to_gallery Lambda
• Triggered when AI detects labels in images
• Combines user-provided tags with AI-detected tags

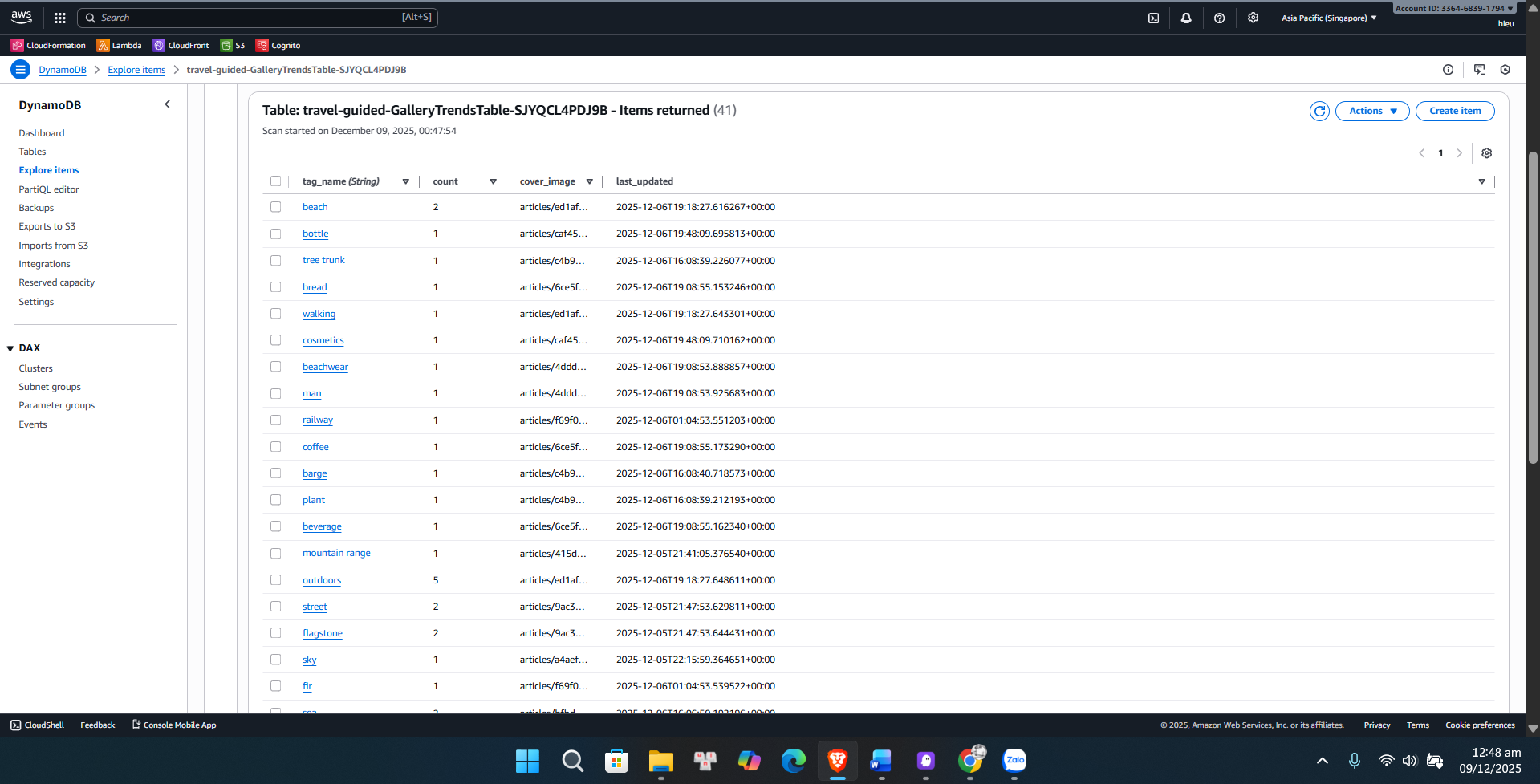

GalleryTrendsTable

Purpose: Track trending tags and popularity statistics

Schema:

Indexes:

• Primary Key: tag_name
• No GSIs

Data Population:

• Updated by AI Service when photos are added/removed
• Increment count when new photo with tag is added
• Decrement count when photo is deleted

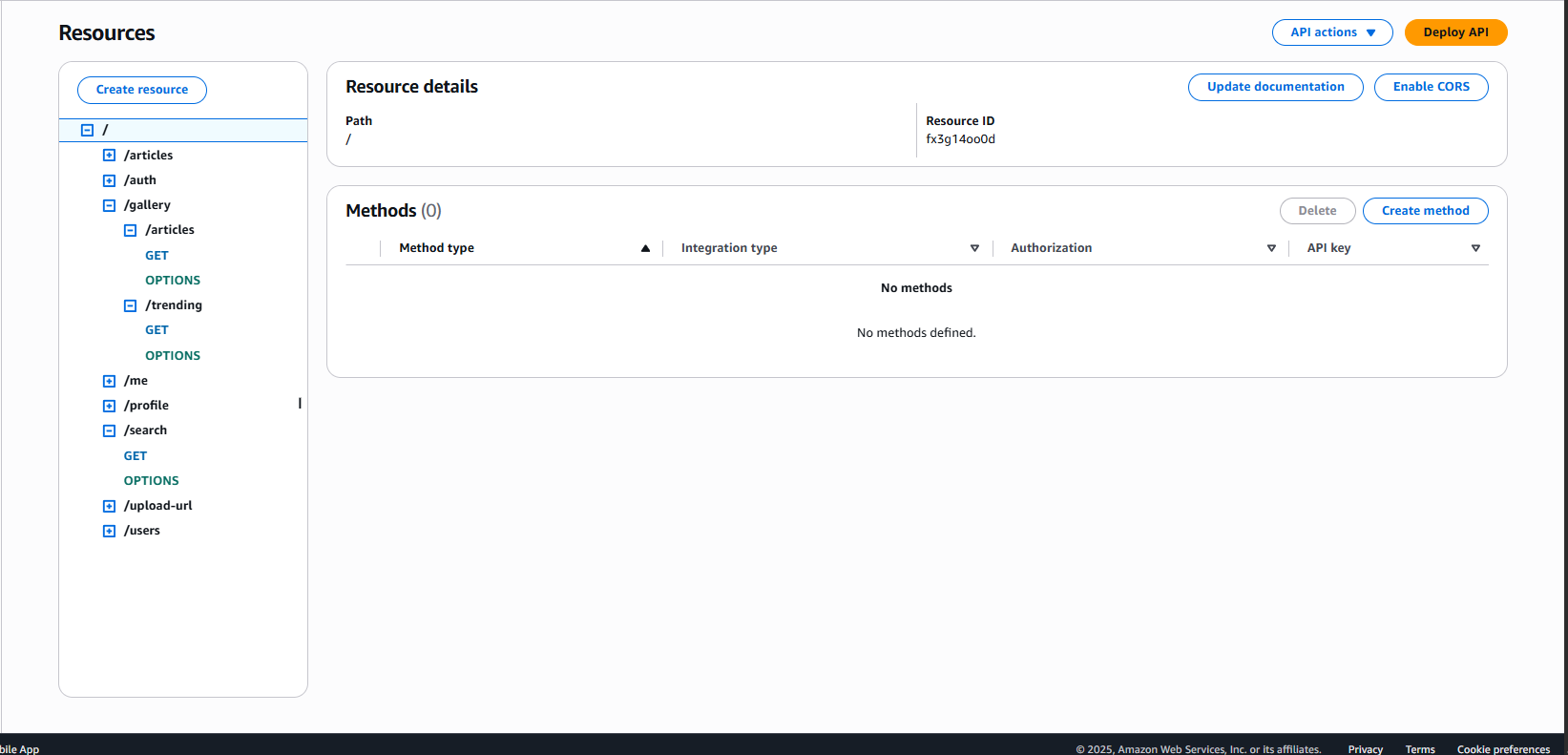

API Endpoints

Endpoint 1: GET /gallery/trending

Purpose: Get list of trending tags

Request:

GET /gallery/trending?limit=20 HTTP/1.1
Host: {api-gateway-url}

Query Parameters:

Success Response (200):

{
  "items": [
    {
      "tag_name": "Beach",
      "count": 150,
      "cover_image": "articles/abc123/image.jpg",
      "last_updated": "2024-01-15T10:30:00Z"
    }
  ],
  "total_tags": 500
}

Error Response (500):

{
  "error": "Internal error: Gallery Trends table not configured"
}

Frontend Integration:

async function getTrendingTags(limit: number = 20) {
  const response = await fetch(
    `${API_BASE_URL}/gallery/trending?limit=${limit}`
  );

  if (!response.ok) {
    throw new Error('Failed to fetch trending tags');
  }

  return await response.json();
}

// Usage
const data = await getTrendingTags(10);
console.log(data.items);

Endpoint 2: GET /gallery/articles

Purpose: Search photos by tag

Request:

GET /gallery/articles?tag=beach&limit=50 HTTP/1.1
Host: {api-gateway-url}

Query Parameters:

Success Response (200):

{
  "items": [
    {
      "photo_id": "article-123-image-1",
      "image_url": "articles/abc123/image.jpg",
      "tags": ["beach", "sunset", "ocean"],
      "status": "public",
      "created_at": "2024-01-15T10:30:00Z"
    }
  ]
}

Error Responses:

// 400 - Bad Request
{
  "error": "tag parameter is required"
}

// 500 - Internal Server Error
{
  "error": "Internal error: Gallery Photos table not configured"
}

Frontend Integration:

async function getPhotosByTag(tag: string, limit: number = 50) {
  const response = await fetch(
    `${API_BASE_URL}/gallery/articles?tag=${encodeURIComponent(tag)}&limit=${limit}`
  );

  if (!response.ok) {
    const error = await response.json();
    throw new Error(error.error || 'Failed to fetch photos');
  }

  return await response.json();
}

// Usage
const photos = await getPhotosByTag('beach', 20);
console.log(photos.items);

Frontend Gallery Display

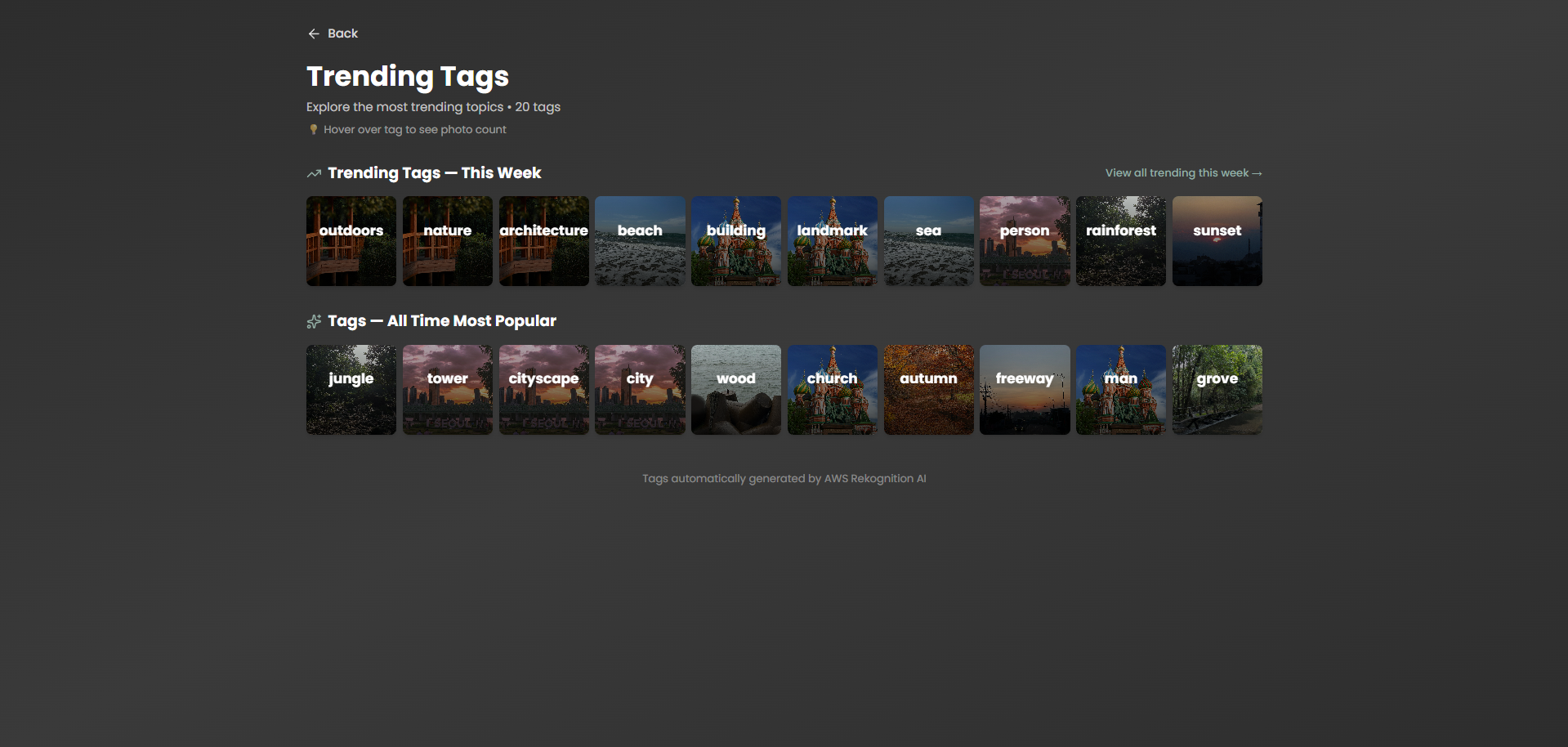

Trending Tags View:

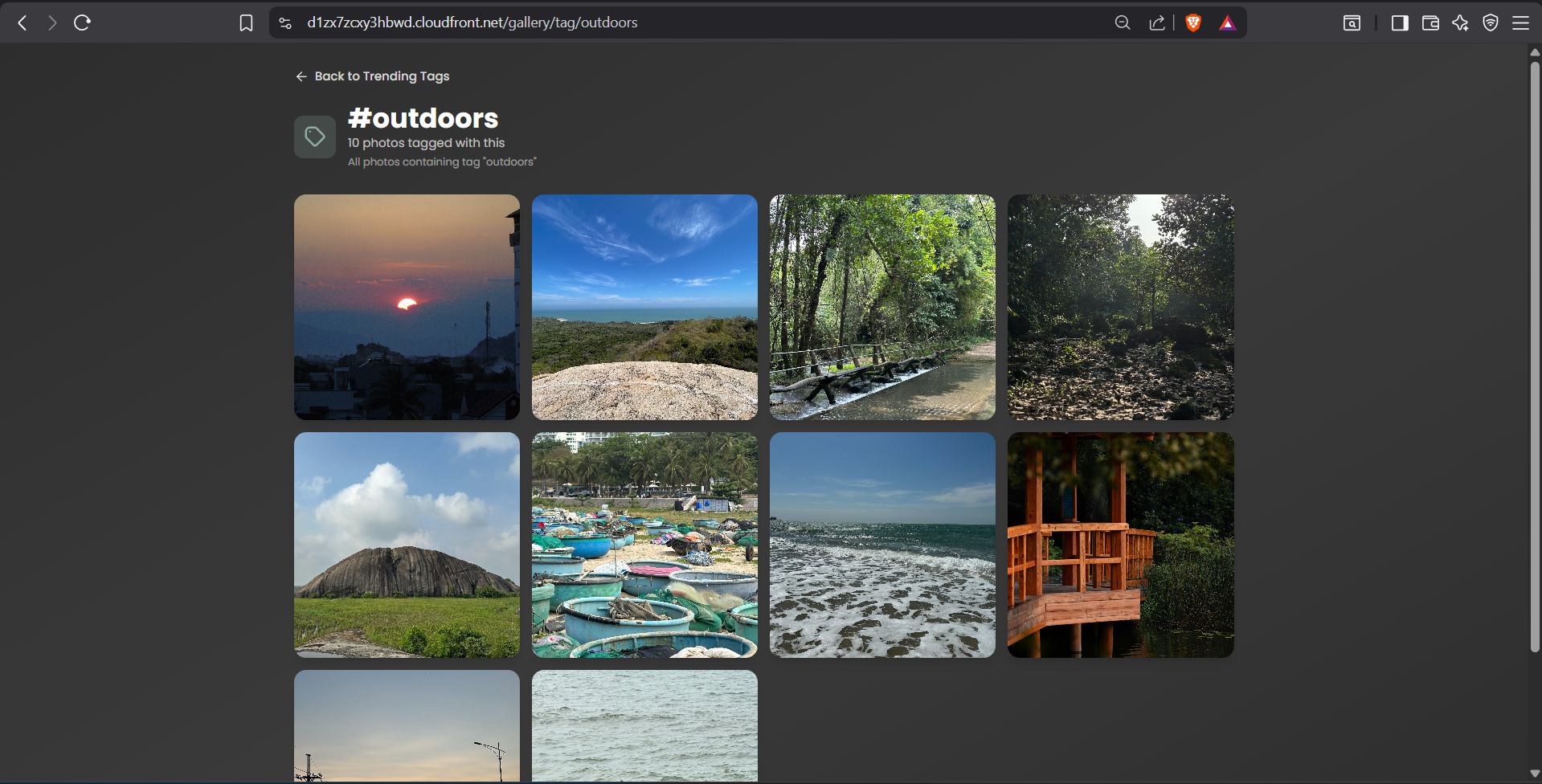

Search Results View:

Performance Analysis

Current Performance Metrics

Lambda Configuration:

DynamoDB Operations:

• Both functions use Scan operations (full table scan)
• No indexes utilized
• In-memory filtering and sorting

Performance Bottlenecks

1. Full Table Scans

Issue: Scan entire table on every request

Impact:

• Slow performance with large tables (>10,000 items)
• High DynamoDB read capacity consumption
• Increased costs

Solution: Add Global Secondary Indexes (GSI)

2. In-Memory Sorting (GetTrendingTags)

Issue: Load all tags into memory, sort, then return top N

Impact:

• Unnecessary memory usage
• Slow with large datasets
• Lambda timeout risk

Solution: Use DynamoDB GSI with count as sort key

# Recommended GSI
GalleryTrendsTable:
  GlobalSecondaryIndexes:
    - IndexName: CountIndex
      KeySchema:
        - AttributeName: dummy_pk  # All items have same value
          KeyType: HASH
        - AttributeName: count
          KeyType: RANGE
      Projection:
        ProjectionType: ALL

3. In-Memory Filtering (GetArticlesByTag)

Issue: Scan all photos, filter by tag in Lambda

Impact:

• Very inefficient
• Doesn’t scale
• High latency

Solution: Use DynamoDB GSI or ElasticSearch

# Recommended GSI
GalleryPhotosTable:
  GlobalSecondaryIndexes:
    - IndexName: TagIndex
      KeySchema:
        - AttributeName: tag
          KeyType: HASH
        - AttributeName: created_at
          KeyType: RANGE
      Projection:
        ProjectionType: ALL

Note: DynamoDB doesn’t support array attributes in GSI. Need to denormalize data or use ElasticSearch.

4. No Caching

Issue: Every request queries DynamoDB

Impact:

• Unnecessary load
• Higher costs
• Slower response times

Solution: Add caching layer

Options:

• ElastiCache Redis: For frequently accessed data
• CloudFront: For API responses
• Lambda in-memory cache: For small datasets

Example with ElastiCache:

import redis

redis_client = redis.Redis(host=REDIS_HOST, port=6379)
CACHE_TTL = 300  # 5 minutes

def get_trending_tags_cached(limit):
    cache_key = f"trending_tags:{limit}"

    # Try cache first
    cached = redis_client.get(cache_key)
    if cached:
        return json.loads(cached)

    # Query DynamoDB
    result = get_trending_tags_from_db(limit)

    # Save to cache
    redis_client.setex(cache_key, CACHE_TTL, json.dumps(result))

    return result

5. No Pagination

Issue: Return all results (up to limit)

Impact:

• Large responses
• Slow load times
• Poor user experience

Solution: Implement cursor-based pagination

def lambda_handler(event, context):
    params = event.get('queryStringParameters', {})
    limit = int(params.get('limit', 20))
    cursor = params.get('cursor')  # LastEvaluatedKey from previous request

    scan_kwargs = {'Limit': limit}
    if cursor:
        scan_kwargs['ExclusiveStartKey'] = json.loads(base64.b64decode(cursor))

    response = table.scan(**scan_kwargs)

    result = {
        'items': response['Items'],
        'cursor': None
    }

    if 'LastEvaluatedKey' in response:
        result['cursor'] = base64.b64encode(
            json.dumps(response['LastEvaluatedKey']).encode()
        ).decode()

    return {'statusCode': 200, 'body': json.dumps(result)}

Optimization Recommendations

Short-term Improvements (Quick Wins)

1. Add Caching

   • Implement CloudFront caching for API responses
   • TTL: 5 minutes for trending tags
   • Reduces DynamoDB load by 90%+

2. Optimize Lambda Memory

   • Test with 256 MB instead of 512 MB
   • May reduce costs without impacting performance

3. Add Pagination

   • Implement cursor-based pagination
   • Improve frontend UX with infinite scroll

4. Error Handling

   • Add retry logic for DynamoDB errors
   • Implement circuit breaker pattern

Long-term Enhancements

1. Add DynamoDB GSIs

   • CountIndex for GalleryTrendsTable
   • TagIndex for GalleryPhotosTable (requires denormalization)

2. Implement ElasticSearch

   • Better for complex tag queries
   • Full-text search capabilities
   • Faceted search support

3. Add ElastiCache

   • Redis for frequently accessed data
   • Reduce DynamoDB costs
   • Improve response times

4. Implement Event-Driven Updates

   • Use DynamoDB Streams
   • Update cache automatically when data changes
   • Maintain cache consistency

Cost Estimation

Current Costs (Estimated)

Assumptions:

• 10,000 photos in gallery
• 500 unique tags
• 1,000 requests/day

DynamoDB:

• Read Capacity: ~$0.25/day (full scans)
• Storage: ~$0.01/day

Lambda:

• Invocations: ~$0.20/day
• Duration: ~$0.10/day

API Gateway:

• Requests: ~$0.04/day

Total: ~$0.60/day or ~$18/month

Optimized Costs (With Caching)

With CloudFront + ElastiCache:

• DynamoDB: ~$0.03/day (90% reduction)
• Lambda: ~$0.03/day (90% reduction)
• ElastiCache: ~$1.50/day (t3.micro)
• CloudFront: ~$0.02/day

Total: ~$1.58/day or ~$47/month

Note: Higher upfront cost but better performance and scalability.

Key Takeaways

1. Gallery Service provides photo discovery through trending tags and search
2. Current implementation uses full table scans (inefficient)
3. Performance bottlenecks include no caching, no indexes, in-memory operations
4. Quick wins include adding caching and pagination
5. Long-term should add GSIs or ElasticSearch for better scalability
6. Cost optimization requires balancing performance vs infrastructure costs
