Parameter Management

Parameter Management for Multiple Environments

Overview

Parameters allow us to deploy the same infrastructure templates to different environments (staging, production) with different configurations.

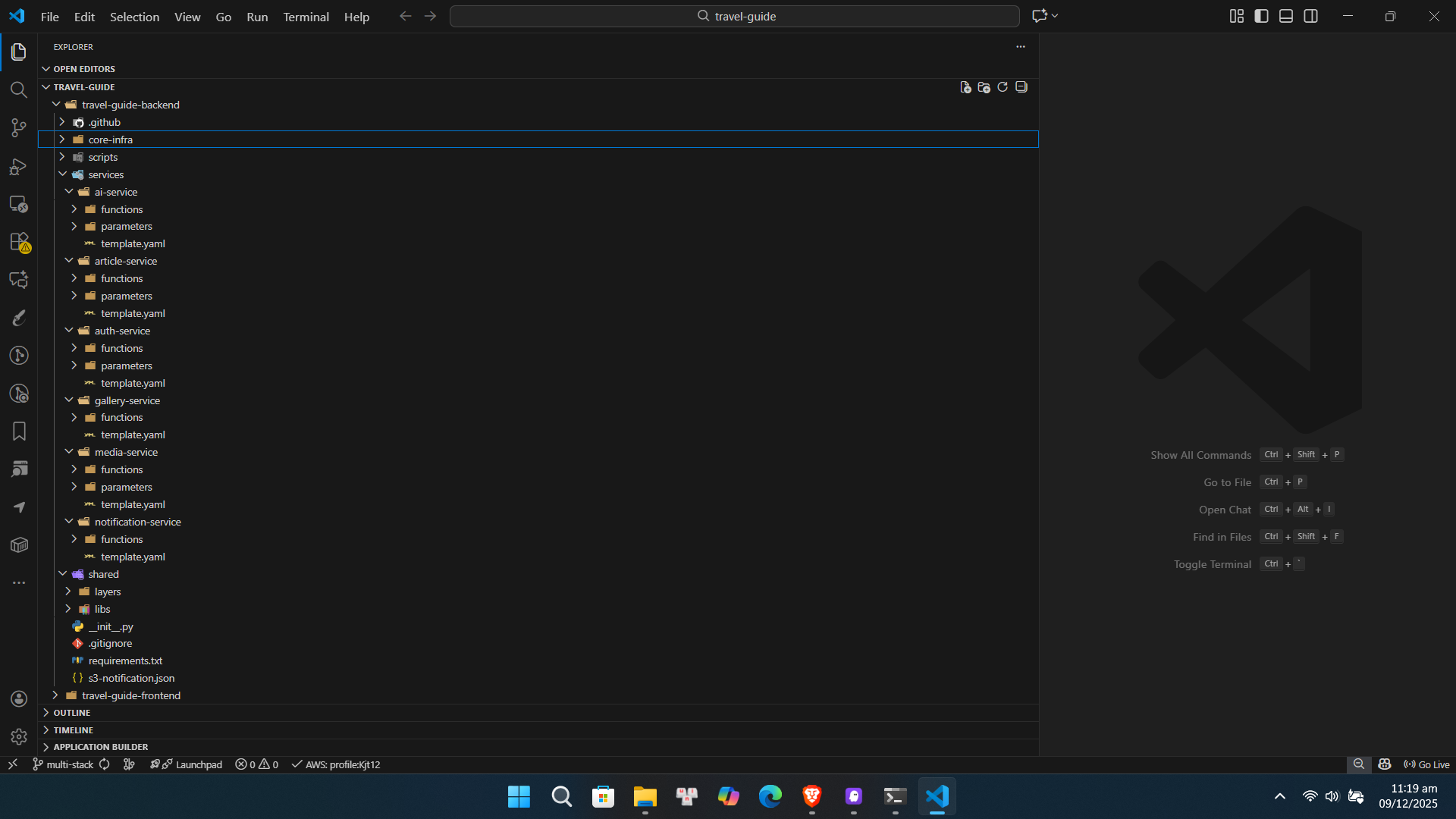

Parameter Files

Parameter Files Structure

We organize parameters in JSON files per environment:

parameters/
├── staging.json
└── prod.json

Example Parameter File

staging.json:

{
  "Environment": "staging",
  "CorsOrigin": "*",
  "AdminEmail": "admin-staging@example.com",
  "LogRetentionDays": "7",
  "EnableDebugLogs": "true",
  "MinCapacity": "1",
  "MaxCapacity": "10"
}

prod.json:

{
  "Environment": "prod",
  "CorsOrigin": "https://travelguide.com",
  "AdminEmail": "admin@example.com",
  "LogRetentionDays": "30",
  "EnableDebugLogs": "false",
  "MinCapacity": "2",
  "MaxCapacity": "100"
}

Parameter Passing Mechanism

Parameters are converted from JSON to CloudFormation format:

# Convert JSON to AWS CLI format
params_override=$(python -c "import json, sys; \
    data=json.load(sys.stdin); \
    print(' '.join([f'ParameterKey={k},ParameterValue={v}' \
    for k,v in data.items()]))" < $PARAMS_FILE)

# Deploy with parameters
aws cloudformation deploy \
    --template-file template.yaml \
    --stack-name my-stack \
    --parameter-overrides $params_override

Template Parameter Definitions

In CloudFormation template:

Parameters:
  Environment:
    Type: String
    Default: staging
    AllowedValues: [staging, prod]
    Description: Deployment environment

  CorsOrigin:
    Type: String
    Default: "*"
    Description: CORS origin for API Gateway

  AdminEmail:
    Type: String
    Description: Admin email for notifications

  LogRetentionDays:
    Type: Number
    Default: 7
    Description: CloudWatch Logs retention in days

  EnableDebugLogs:
    Type: String
    Default: "false"
    AllowedValues: ["true", "false"]
    Description: Enable debug logging

Using Parameters in Resources

Resources:
  CreateArticleFunction:
    Type: AWS::Serverless::Function
    Properties:
      Environment:
        Variables:
          ENVIRONMENT: !Ref Environment
          DEBUG: !Ref EnableDebugLogs
          CORS_ORIGIN: !Ref CorsOrigin

  ApiGateway:
    Type: AWS::Serverless::Api
    Properties:
      Cors:
        AllowOrigin: !Sub "'${CorsOrigin}'"
        AllowHeaders: "'*'"

  LogGroup:
    Type: AWS::Logs::LogGroup
    Properties:
      RetentionInDays: !Ref LogRetentionDays

Environment Separation Strategy

Parameter	Staging	Production	Reason
CorsOrigin	`*`	`https://domain.com`	Security
LogRetention	7 days	30 days	Cost vs compliance
DebugLogs	true	false	Performance
MinCapacity	1	2	Availability
MaxCapacity	10	100	Scale

Sensitive Data Handling

Current Approach (Basic):

{
  "DatabasePassword": "hardcoded-password"
}

Recommended Approach (Secure):

1. AWS Systems Manager Parameter Store:

Parameters:
  DatabasePasswordSSM:
    Type: AWS::SSM::Parameter::Value<String>
    Default: /travelguide/staging/db-password

Resources:
  Function:
    Type: AWS::Serverless::Function
    Properties:
      Environment:
        Variables:
          DB_PASSWORD: !Ref DatabasePasswordSSM

2. AWS Secrets Manager:

Resources:
  DatabaseSecret:
    Type: AWS::SecretsManager::Secret
    Properties:
      Name: !Sub '${AWS::StackName}-db-secret'
      GenerateSecretString:
        SecretStringTemplate: '{"username": "admin"}'
        GenerateStringKey: "password"
        PasswordLength: 32

  Function:
    Type: AWS::Serverless::Function
    Properties:
      Environment:
        Variables:
          SECRET_ARN: !Ref DatabaseSecret

Deployment Script with Parameters

#!/bin/bash
set -e

ENVIRONMENT=$1  # staging or prod
PARAMS_FILE="parameters/${ENVIRONMENT}.json"

if [ ! -f "$PARAMS_FILE" ]; then
    echo "Error: Parameter file not found: $PARAMS_FILE"
    exit 1
fi

# Convert JSON to parameter overrides
params_override=$(python -c "import json, sys; \
    data=json.load(sys.stdin); \
    print(' '.join([f'ParameterKey={k},ParameterValue={v}' \
    for k,v in data.items()]))" < $PARAMS_FILE)

# Deploy stack
aws cloudformation deploy \
    --template-file template.yaml \
    --stack-name "travel-guide-${ENVIRONMENT}" \
    --parameter-overrides $params_override \
    --capabilities CAPABILITY_IAM \
    --no-fail-on-empty-changeset

echo "✅ Deployed to ${ENVIRONMENT}"

Best Practices

Never commit secrets to Git
- Use .gitignore for sensitive parameter files
- Use Parameter Store or Secrets Manager

Validate parameters before deployment

# Validate JSON syntax
jq empty < parameters/staging.json

Document parameters in README

## Parameters
- `Environment`: Deployment environment (staging/prod)
- `CorsOrigin`: CORS origin for API Gateway
- `AdminEmail`: Email for admin notifications

Use parameter constraints

Parameters:
  InstanceType:
    Type: String
    AllowedValues: [t3.micro, t3.small, t3.medium]
    Default: t3.micro

Environment-specific naming

Resources:
  Bucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: !Sub 'travelguide-${Environment}-images'

Key Takeaways

Parameter files enable environment-specific configurations
JSON format is easy to read and maintain
Conversion script transforms JSON to CloudFormation format
Sensitive data should use Parameter Store or Secrets Manager
Validation prevents deployment errors
Documentation helps team understand parameters

Common Pitfalls

❌ Hardcoding values in templates

# Bad
Environment:
  Variables:
    API_URL: "https://api.staging.example.com"

✅ Use parameters

# Good
Environment:
  Variables:
    API_URL: !Sub "https://api.${Environment}.example.com"

❌ Committing secrets to Git

{
  "DatabasePassword": "super-secret-password"
}

✅ Use Secrets Manager

DatabaseSecret:
  Type: AWS::SecretsManager::Secret
  Properties:
    GenerateSecretString: {}
