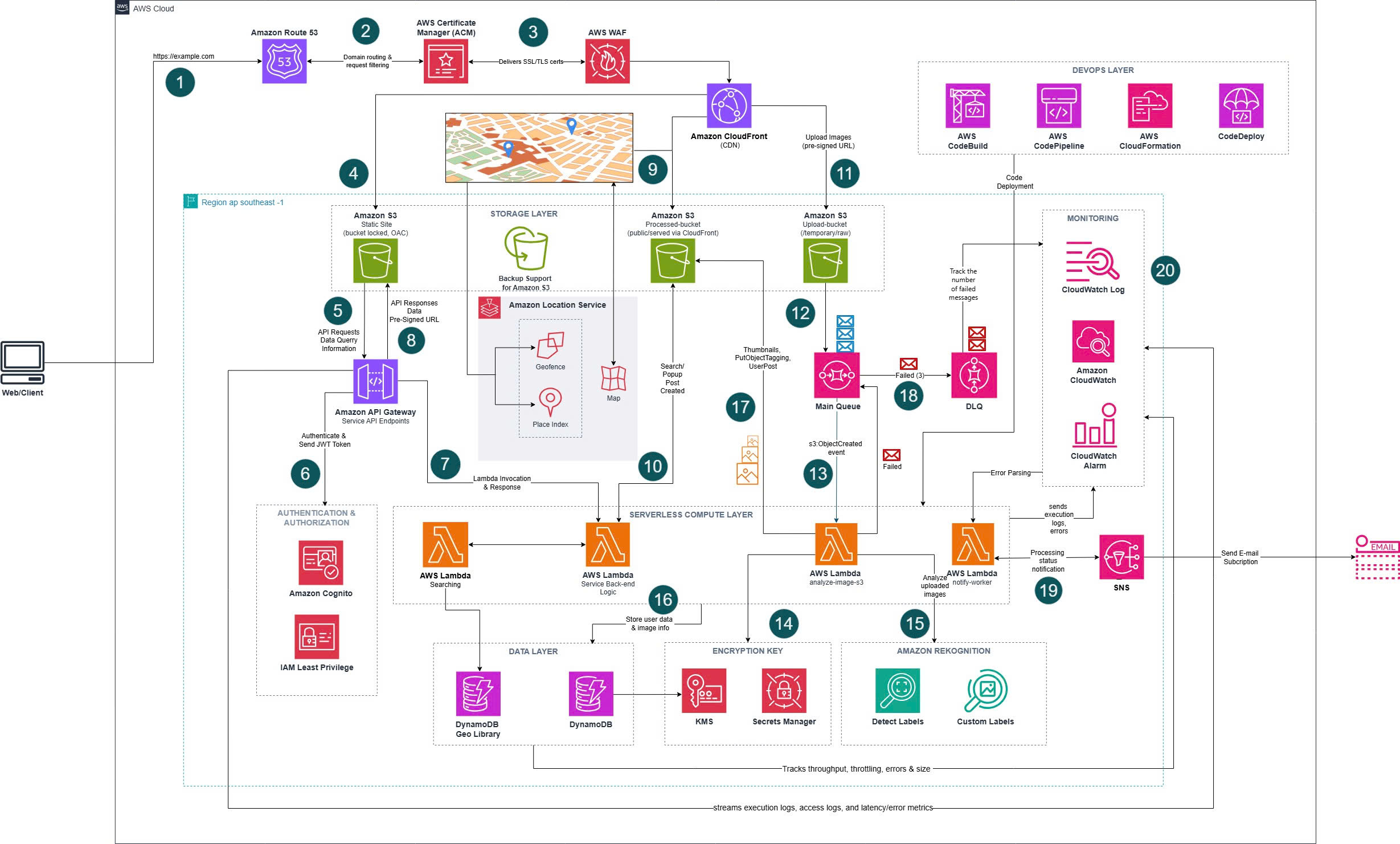

Multi-Stack Architecture

Multi-Stack Pattern Deep Dive

What is Multi-Stack Pattern?

Instead of deploying all infrastructure in a single CloudFormation stack, we separate resources into multiple stacks based on their lifecycle, dependencies, and blast radius.

Stack Separation Strategy

Core Stack (Stateful Resources)

Contains shared, stateful resources that rarely change:

• DynamoDB Tables: ArticlesTable, UserProfilesTable, GalleryPhotosTable, etc.
• S3 Buckets: Image storage, deployment artifacts
• Cognito User Pool: User authentication
• VPC & Networking: If needed
• IAM Roles: Shared execution roles

Characteristics:

• Changes infrequently
• Shared across multiple services
• High cost of recreation
• Long deployment time (5-10 minutes)

Service Stacks (Stateless Resources)

Each microservice has its own stack:

• Lambda Functions: Service-specific business logic
• API Gateway: Service endpoints
• EventBridge Rules: Service-specific events
• SQS Queues: Service-specific queues
• SNS Topics: Service-specific notifications

Characteristics:

• Changes frequently
• Independent deployment
• Fast deployment (2-3 minutes)
• Low recreation cost

Stack Separation Criteria

Benefits of Multi-Stack Pattern

1. Blast Radius Reduction

Problem: In a monolithic stack, any change affects all resources.

Solution: With multi-stack, updating Article Service doesn’t impact Auth or Media services.

Example:

# Update only Article Service
./deploy-service.sh article-service staging

# Other services (auth, media, gallery) remain untouched

Impact: 🔴 High - Prevents cascading failures

2. Independent Deployment

Problem: Can’t deploy services independently in monolithic stack.

Solution: Each service can be deployed, rolled back, or updated independently.

Example:

# Deploy new feature to Article Service
./deploy-service.sh article-service staging

# Rollback if issues found
aws cloudformation delete-stack --stack-name travel-guide-article-service-staging

# Other services continue running normally

Impact: 🔴 High - Enables continuous deployment

3. Faster Deployment

Problem: Monolithic stack takes 15-20 minutes to deploy.

Solution: Service stacks deploy in 2-3 minutes.

Comparison:

• Monolithic Stack: 15-20 minutes (all resources)
• Core Stack: 5-10 minutes (one-time)
• Service Stack: 2-3 minutes (frequent)

Impact: 🟡 Medium - Improves developer productivity

4. Parallel Development

Problem: Teams block each other when working on same stack.

Solution: Teams can work on different service stacks simultaneously.

Example:

• Team A: Updates Article Service
• Team B: Updates Media Service
• Team C: Updates Gallery Service
• No conflicts, no waiting

Impact: 🔴 High - Enables team scalability

5. Easier Rollback

Problem: Rolling back monolithic stack affects all services.

Solution: Rollback only the affected service stack.

Example:

# Bug found in Article Service
aws cloudformation delete-stack --stack-name travel-guide-article-service-staging

# Redeploy previous version
git checkout v1.2.3
./deploy-service.sh article-service staging

# Auth, Media, Gallery services unaffected

Impact: 🔴 High - Reduces downtime

6. Resource Limit Management

Problem: CloudFormation has 500 resource limit per stack.

Solution: Distribute resources across multiple stacks.

Example:

• Core Stack: ~50 resources (tables, buckets, pools)
• Each Service Stack: ~20 resources (lambdas, APIs)
• Total: 6 services × 20 = 120 resources (well under limit)

Impact: 🟢 Low - Prevents hitting limits

7. Cost Optimization

Problem: Can’t optimize costs per service in monolithic stack.

Solution: Tag and track costs per service stack.

Example:

Tags:
  - Key: Service
    Value: ArticleService
  - Key: Environment
    Value: staging
  - Key: CostCenter
    Value: Engineering

Impact: 🟡 Medium - Enables cost attribution

Comparison: Monolithic vs Multi-Stack

Stack Dependencies

graph TD
    Core[Core Stack] --> Auth[Auth Service]
    Core --> Article[Article Service]
    Core --> Media[Media Service]
    Core --> AI[AI Service]
    Core --> Gallery[Gallery Service]
    Core --> Notification[Notification Service]

    style Core fill:#ff9999
    style Auth fill:#99ccff
    style Article fill:#99ccff
    style Media fill:#99ccff
    style AI fill:#99ccff
    style Gallery fill:#99ccff
    style Notification fill:#99ccff

Deployment Order:

1. Deploy Core Stack first (provides shared resources)
2. Deploy Service Stacks in any order (parallel possible)

Key Takeaways

1. Separate stateful and stateless resources into different stacks
2. Core Stack contains shared, rarely-changing resources
3. Service Stacks contain service-specific, frequently-changing resources
4. Benefits include faster deployments, reduced blast radius, and better team collaboration
5. Trade-off is increased complexity in managing multiple stacks
6. Cross-stack references enable resource sharing between stacks

When to Use Multi-Stack

✅ Use Multi-Stack when:

• Building microservices architecture
• Multiple teams working on different services
• Frequent deployments required
• Need independent service lifecycle

❌ Avoid Multi-Stack when:

• Simple monolithic application
• Single team, infrequent deployments
• All resources tightly coupled
• Overhead not justified
